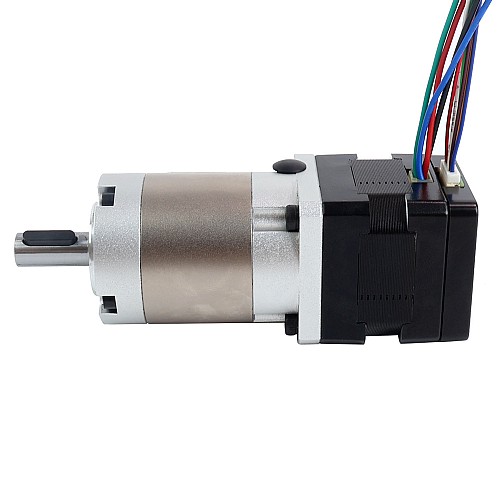

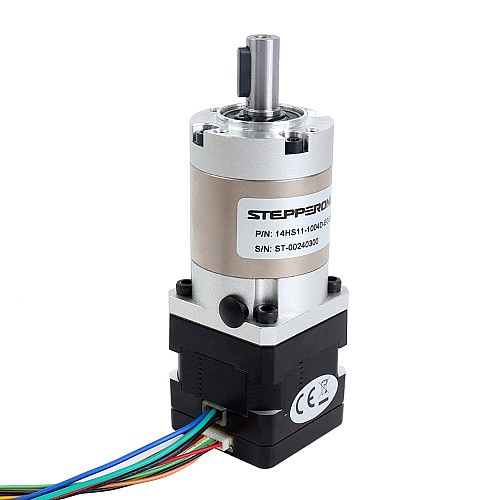

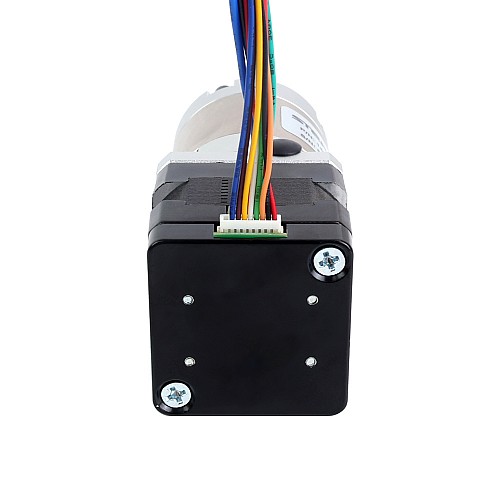

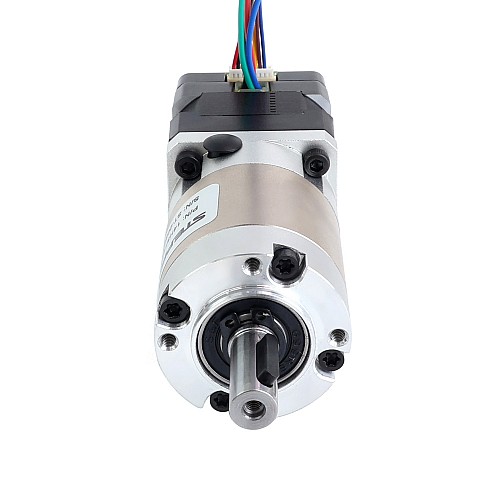

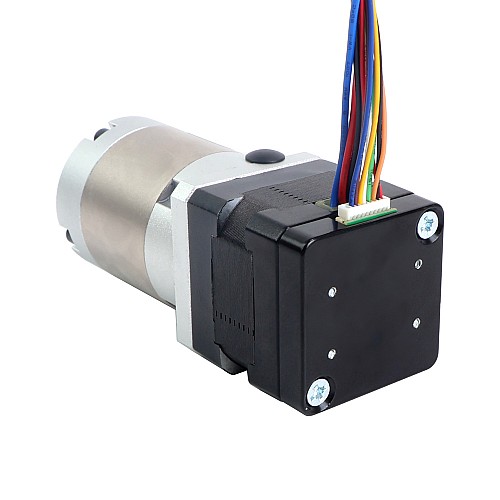

Nema 14 Stepper Motor with High Precision Gearbox Gear Ratio 20:1 & Magnetic Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$146.16

5 + C$131.31

10 + C$119.18

50 + C$109.11

100 + C$100.61

In Stock: 10000
Model: 14HS11-1004D-EGS20-AR4
Gross Weight: 0.43kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This motor is an upgraded version of motor 14HS11-1004D-PG19-AR4 and is the J6 motor in and AR4-MK3 kit. It is integrated with a higher precision planetary gearbox of 20:1 gear ratio and an encoder with 3 channels and 1000PPR(4000CPR) resolution. It has higher precision and can also meet the higher requirements for other applications.

Electrical Specification

Manufacturer PartNumber: 14HS11-1004D-EGS20-AR4
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque without Gearbox: 12.5Ncm(17.7oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.5ohms
Inductance: 3.5mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 20:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max. Permissible Torque: 8.5Nm(1203.7oz.in)
Moment Permissible Torque: 17Nm(2407.4oz.in)
Ambient Temperature: -10 - 500°C(14°F~122°F)
Insulation Class: B 130°C[266°F]
Temperature Rise: MAX.80°C

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ

Physical Specifications

Body Length: 77.5mm
Motor Length: 28mm
Gearbox Length: 49.5mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 20mm
Key-way Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.38kg

Motor and Encoder Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Encoder	+5V	EGND	EA+	EA-	EB+	EB-	EZ+	EZ-
Wire	Red	Black	Brown	Orange	Blue	Green	Yellow	White

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.0
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.125
Holding Torque(oz.in)	17.7
Inductance(mH)	3.5
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	3.5
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=20arcmin
Body Length(mm)	77.5
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	20
Gearbox Type	EGS Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
