Nema 16 Bipolar 0.9deg 11Ncm(15.58oz.in) 1.2A 39x39x22mm 4 Wires

3 reviews - Write a review

C$13.51

5 + C$12.88

10 + C$12.30

50 + C$11.77

100 + C$11.29

In Stock: 10000
Model: 16HM09-1204S
Gross Weight: 0.20kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

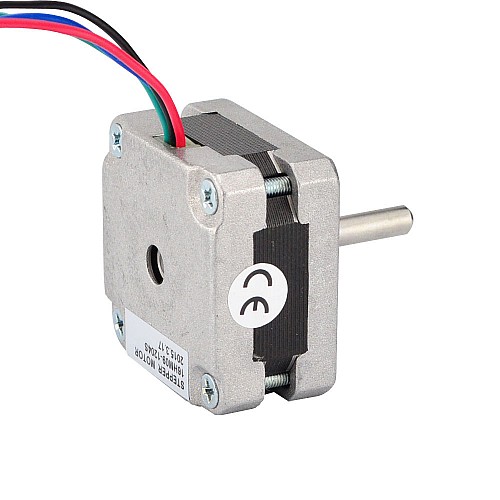

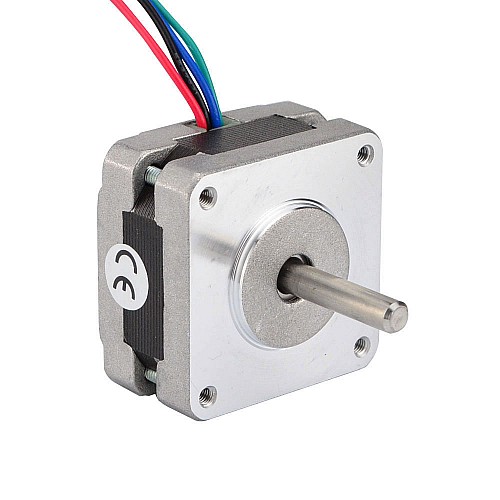

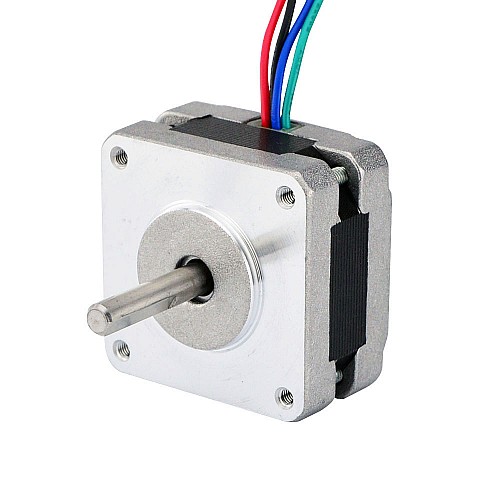

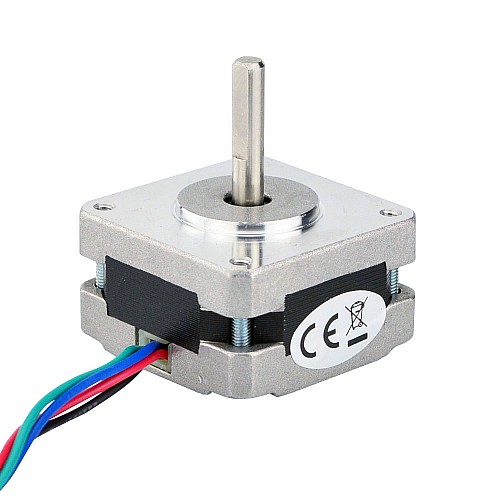

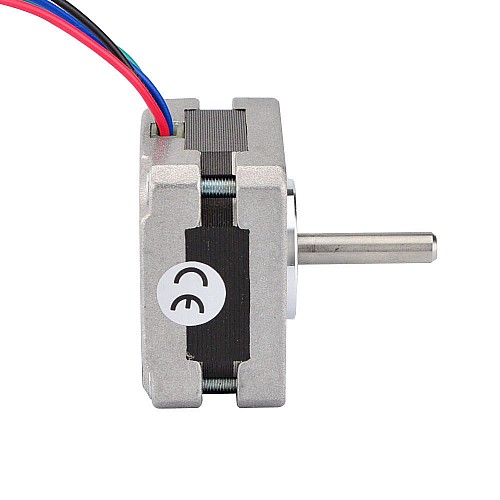

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x22mm. It has 4 wires, each phase draws 1.2 A at 3.6V, with holding torque 11Ncm(15.58oz.in).

Electrical Specification

Manufacturer Part Number: 16HM09-1204S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 11Ncm(15.58oz.in)
Rated Current/phase: 1.2A
Phase Resistance: 3ohms
Inductance: 2.7mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39 x 39mm
Body Length: 22mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 100g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	11
Holding Torque(oz.in)	15.58
Inductance(mH)	2.7
Phase Resistance(ohms)	3
Rated Current(A)	1.2
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	22
Frame Size(mm)	Nema 16 (39 x 39)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	100
