Nema 16 Bipolar 0.9deg 18Ncm(25.5oz.in) 0.4A 39x39x34mm 4 Wires

1 reviews - Write a review

C$14.00

5 + C$13.33

10 + C$12.74

50 + C$12.20

100 + C$11.69

In Stock: Pre-order
Model: 16HM13-0404S
Gross Weight: 0.30kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 111

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

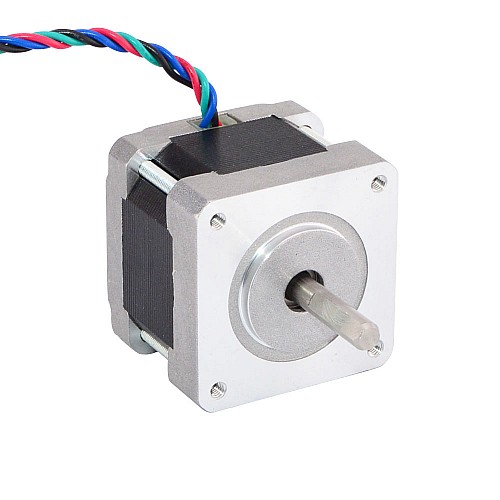

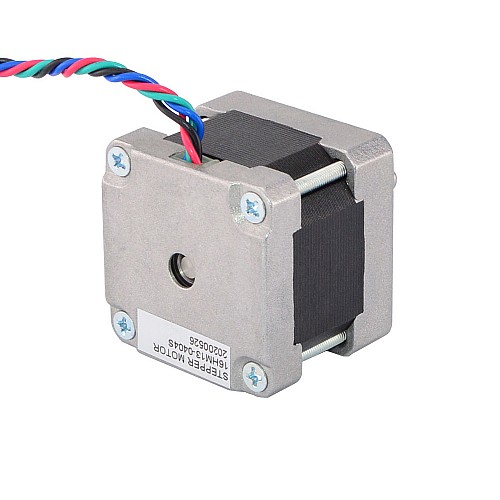

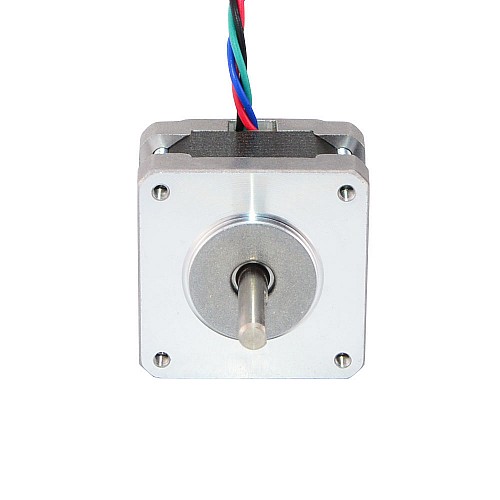

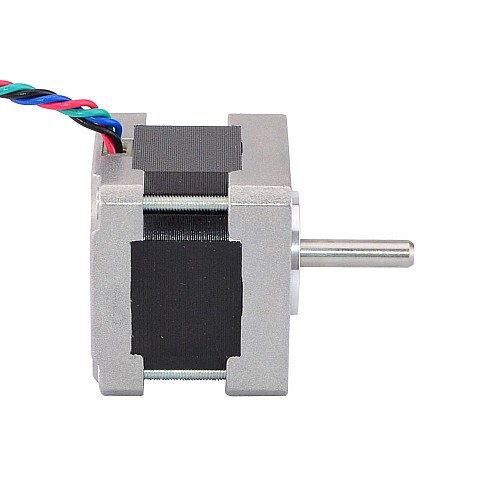

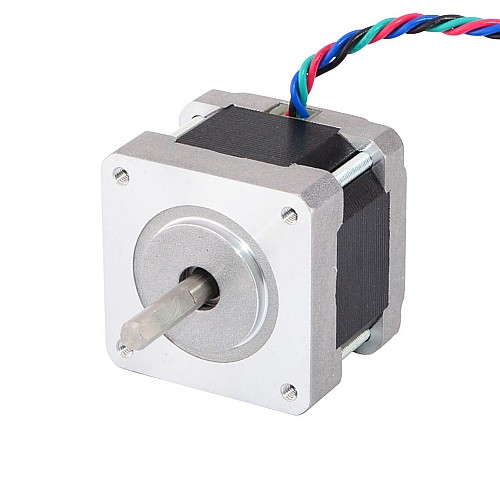

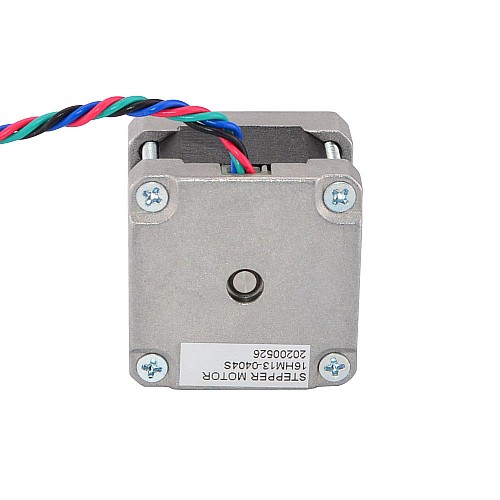

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x34mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 18Ncm(25.5oz.in).

Electrical Specification

Manufacturer Part Number: 16HM13-0404S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 18Ncm(25.5oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Inductance: 43mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39 x 39mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
Number of Leads: 4
Lead Length: 300mm
Weight: 210g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	18
Holding Torque(oz.in)	25.5
Inductance(mH)	43
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 16 (39 x 39)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	22
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	210
