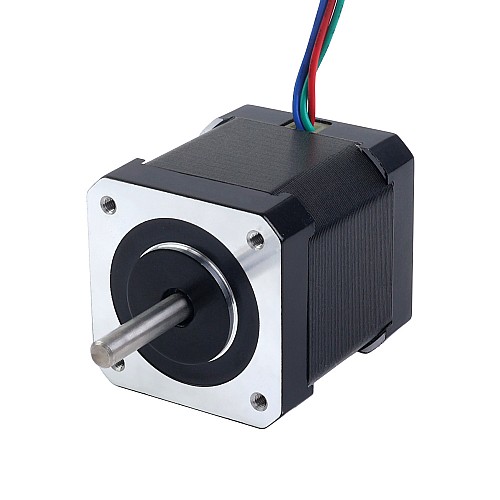

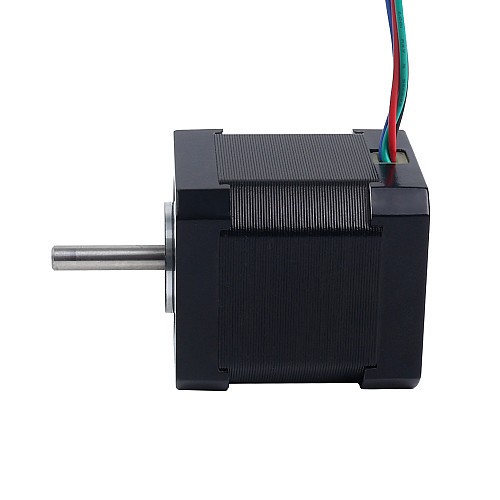

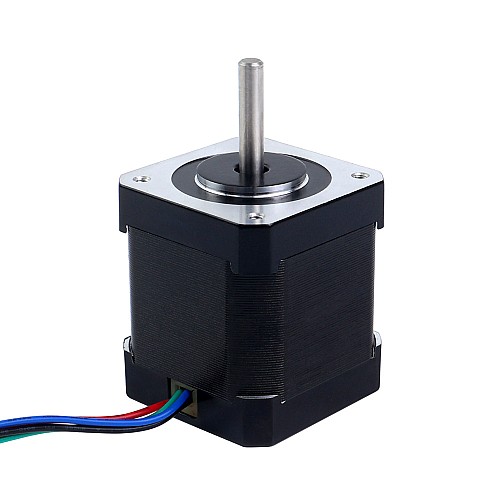

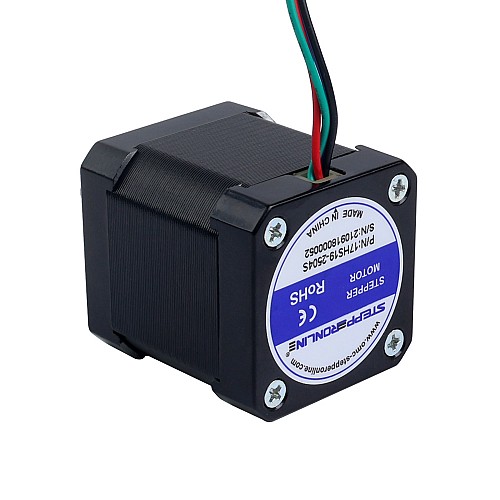

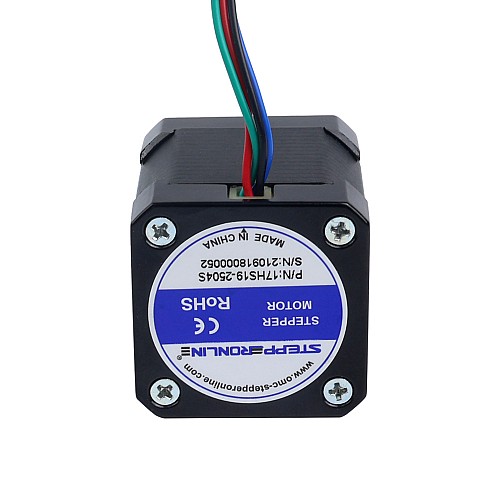

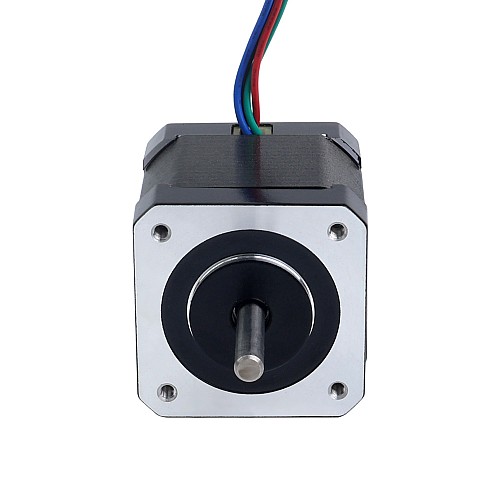

Nema 17 Bipolar 1.8deg 60Ncm(84.97oz.in) 2.5A 42x42x48mm 4 Wires

0 reviews - Write a review

C$14.73

5 + C$14.03

10 + C$13.39

50 + C$12.82

100 + C$12.30

In Stock: 10000
Model: 17HS19-2504S
Gross Weight: 0.42kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 32

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 17 bipolar stepper motor features a step angle of 1.8 degrees and compact dimensions of 42x42x48mm. It is equipped with 4 wires, delivers 2.5A per phase, and provides a holding torque of 60Ncm(84.97oz.in).

Electrical Specification

Manufacturer Part Number: 17HS19-2504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 60Ncm(84.97oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 1.10ohms±10%
Inductance: 1.75mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Shaft Type: Round
Number of Leads: 4
Cable Length: 300mm
Weight: 358g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	60
Holding Torque(oz.in)	84.97
Inductance(mH)	1.75
Phase Resistance(ohms)	1.1
Rated Current(A)	2.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Cable Length(mm)	300
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
