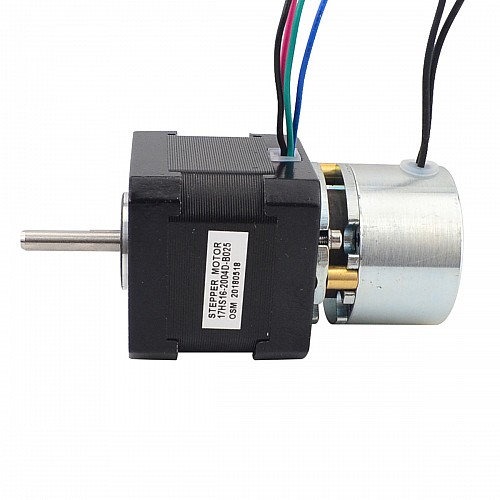

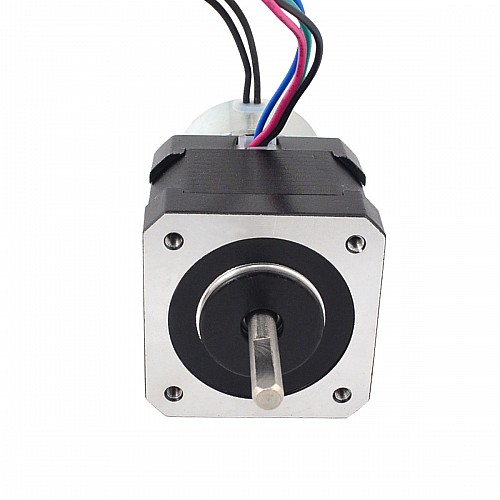

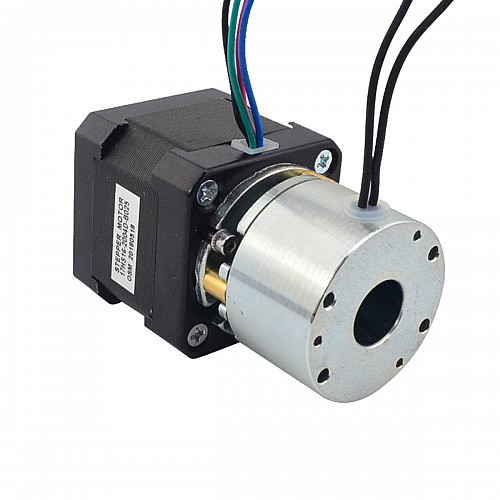

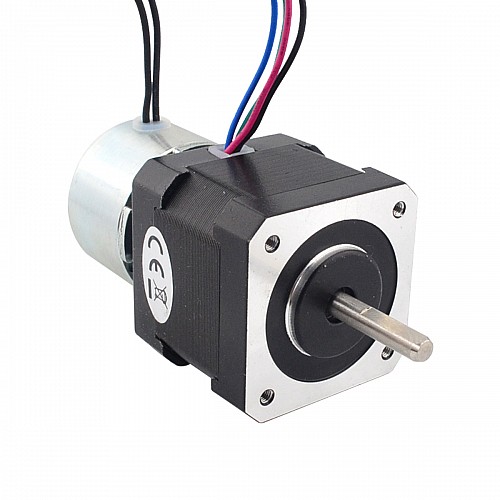

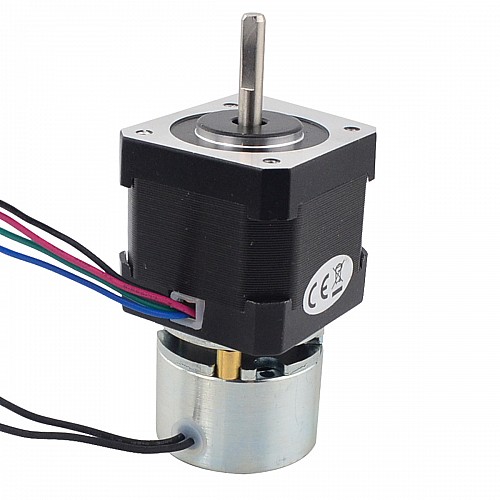

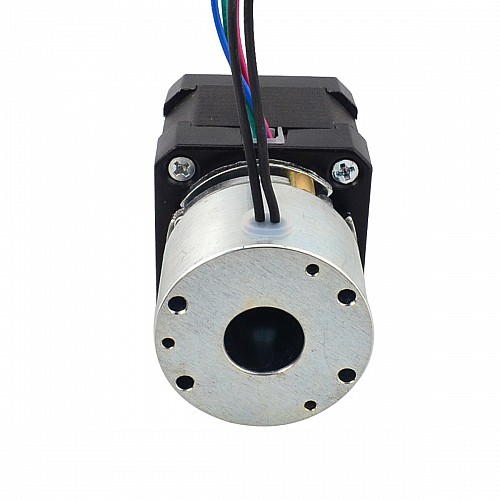

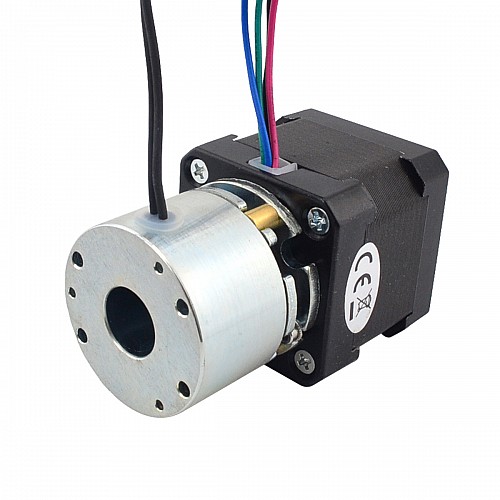

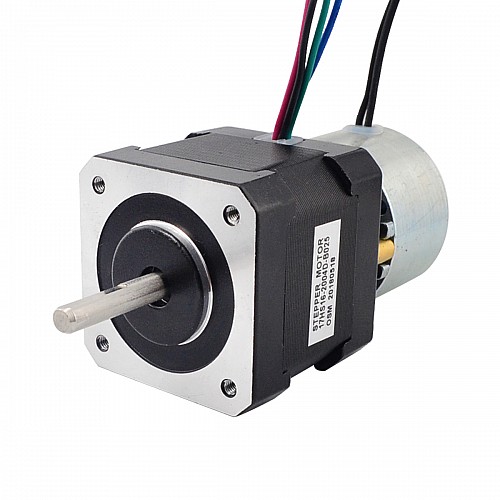

Nema 17 Stepper 0.45Nm(64oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)

1 reviews - Write a review

C$68.52

5 + C$65.70

10 + C$63.09

50 + C$60.69

100 + C$58.46

In Stock: Pre-order
Model: 17HS16-2004D-B025
Gross Weight: 0.52kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Motor Specification

Manufacturer Part Number: 17HS16-2004D-B025
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.45Nm(63.74oz.in)
Rated Current/phase: 2.0A
Voltage: 2.20V
Phase Resistance: 1.1ohms
Inductance: 2.60mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 42 x 42mm
Motor Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 0.25Nm(35.4oz.in)
Moment of Interia: 0.6x10^-6kg.cm²
Voltage: 24V
Power: 5W
Heat-resistance Class: F
Max.Speed: 5000rpm
Weight: 0.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Phase Resistance(ohms)	1.1
Rated Current(A)	2.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	25
Brake Torque(oz.in)	35.4
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
