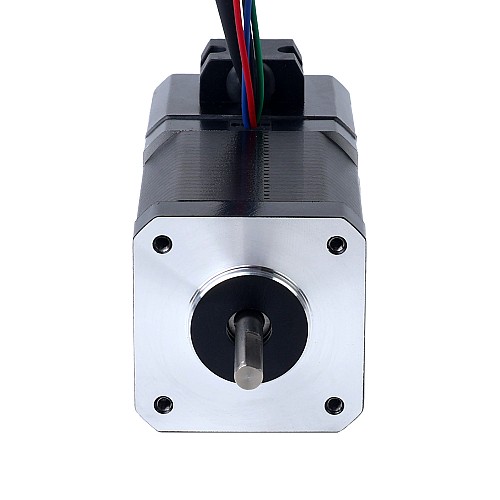

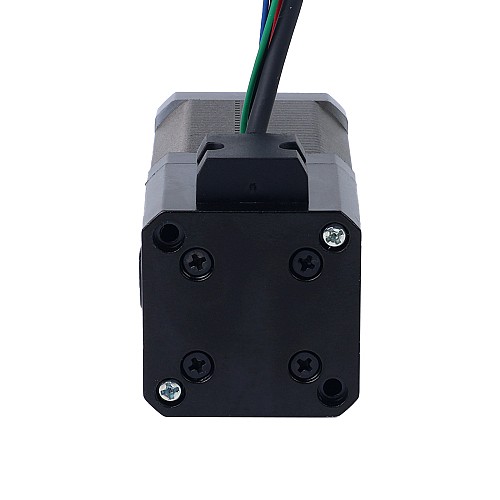

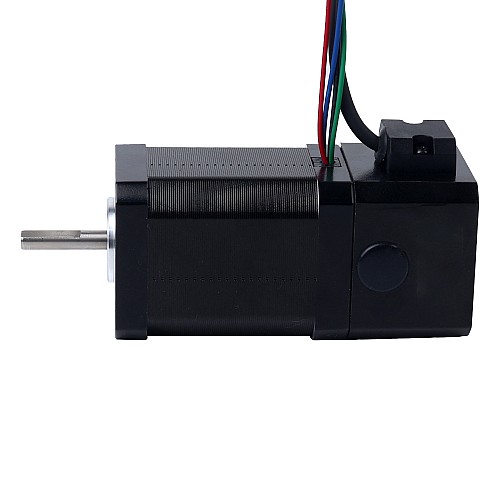

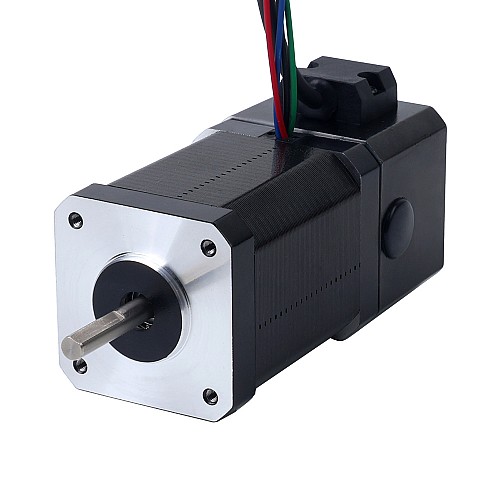

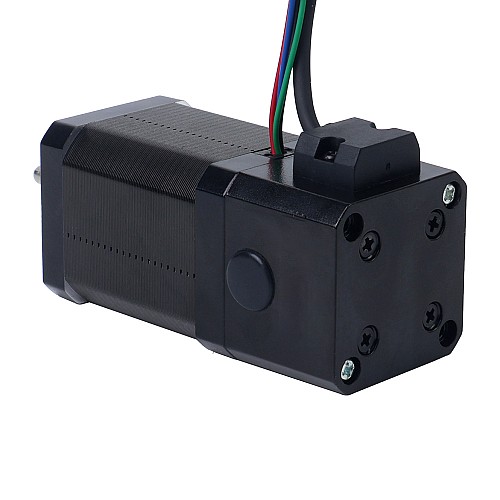

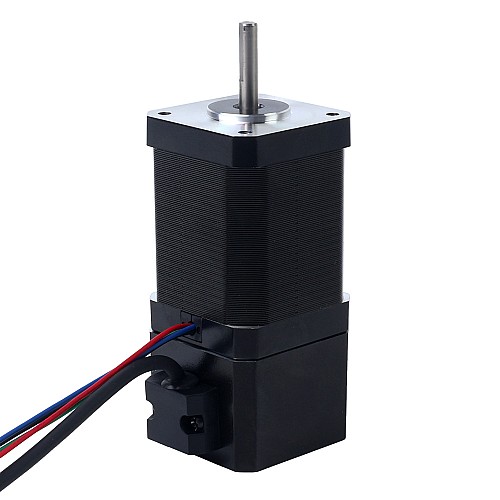

Nema 17 Stepper Motor 0.72Nm(101.96oz.in) with 24V 3.7W Electromagnetic Brake
C$45.82
5 + C$43.93
10 + C$42.19
50 + C$40.58
100 + C$39.10
- In Stock: 10000
- Model: 17HS24-2004D-B070
- Gross Weight: 0.75kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 72
Click country for real-time stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
This is a Nema 17 stepper motor with a 24V 3.7W electromagnetic brake. The motor comes with a holding torque of 0.72Nm(101.96oz.in), rated current of 2.0A and 91mm body length.
The built-in electromagnetic brake realizes the function of frequently starting and stopping a stepper motor to ensure that the motor is powered on or locked when it is powered off.
With its unique advantages like affordable price, energy saving, environmental protection, long life, and easy maintenance, etc., it is widely used in automated equipment such as dispensing machines, elevators, CNC machine tools, tapering machines, and packaging machines.
Electrical Specification
- Manufacturer Part Number: 17HS24-2004D-B070
- Number of phase: 2
- Step Angle: 1.8deg
- Holding Torque: 0.72Nm(101.96oz.in)
- Rated Current/phase: 2.0A
- Phase Resistance: 1.70ohms±10%
- Inductance: 3.60mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
- Brake Rated Voltage: 24V
- Brake Torque: 0.7Nm(99.13oz.in)
- Brake Power: 3.7W
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 91mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-Cut Length: 15mm
- Motor Cable Length: 500mm
- Brake Cable Length: 180mm
Connection
A+ |
A- |
B+ |
B- |
Brake DC+ |
Brake DC- |
Black |
Green |
Red |
Blue |
Red |
Black |
Product Type | |
Product Type | Motor w/ Encoder & Brake & Gearbox |
Electrical Specification | |
Holding Torque(Ncm) | 72 |
Holding Torque(oz.in) | 101.96 |
Phase Resistance(ohms) | 1.7 |
Rated Current(A) | 2.0 |
Stepper Motor with | Brake |
Brake Specification | |
Brake Power(W) | 3.7 |
Brake Rated Voltage(V) | 24 |
Brake Torque(Ncm) | 70 |
Brake Torque(oz.in) | 99.13 |
Brake Type | Power Off Brake |
Physical Specification | |
Frame Size(mm) | Nema 17 (42 x 42) |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Output Shaft Type | D |
Shaft Diameter(mm) | 5 |
Shaft Length(mm) | 24 |
File | Size | |
---|---|---|
17HS24-2004D-B070_Full_Datasheet.pdf | 128.86KB | Download |
