Nema 17 Stepper Motor L=39mm Gear Ratio 10:1 MG Series Planetary Gearbox

0 reviews - Write a review

C$34.66

5 + C$33.29

10 + C$32.03

50 + C$30.84

100 + C$29.75

In Stock: 10000
Model: 17HS15-1584S-MG10
Gross Weight: 0.59kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

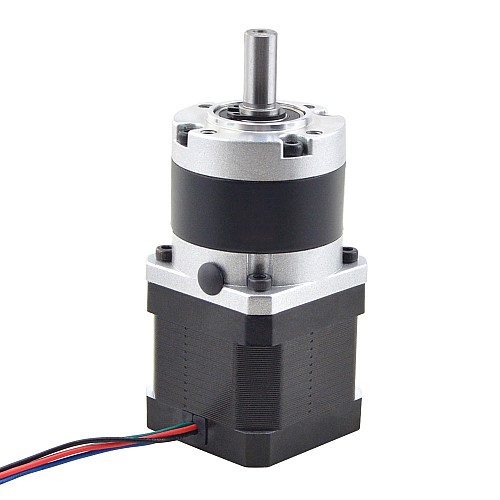

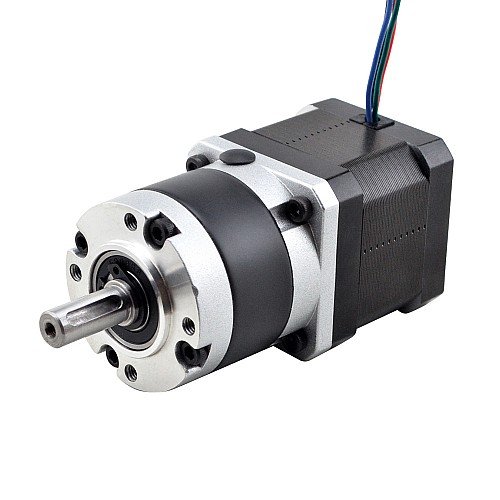

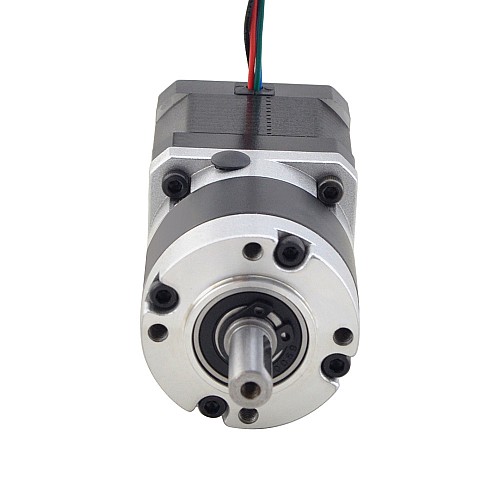

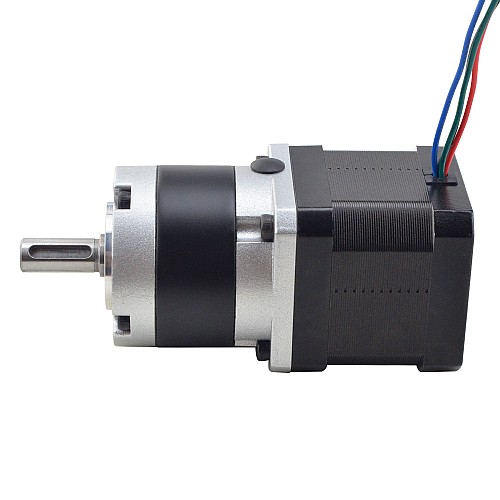

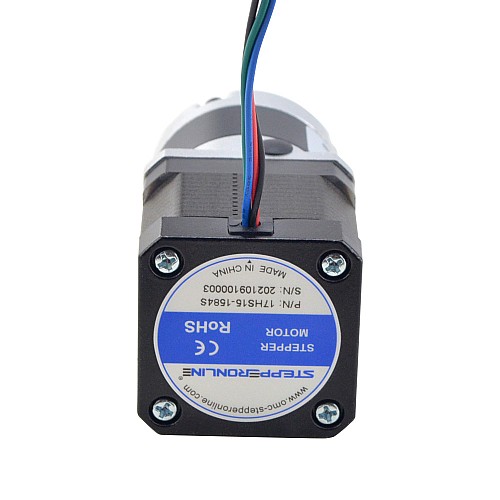

This Nema 17 size stepper motor is equipped with MG series high precision gearbox. The gear ratio is 10:1 and the Max. backlash is 30 arc minutes. It's an excellent choice for applications that require good accuracy but low cost.
As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

Electrical Specification

Part Number: 17HS15-1584S-MG10
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 36Ncm(51.0oz.in)
Rated Current/phase: 1.58A
Phase Resistance: 1.65ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 10:1
Efficiency: 90%
Backlash at No-load:<=30arcmin
Max.Permissible Torque: 5Nm(44.25lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 40mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.58
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.36
Inductance(mH)	3.2
Phase Resistance(ohms)	1.65
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	79
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft
