Nema 23 Bipolar 1.8deg 1.24Nm(175.6oz.in) 2.8A 57x57x56mm 4 Wires

23 reviews - Write a review

C$19.79

5 + C$18.86

10 + C$18.01

50 + C$17.24

100 + C$16.53

In Stock: 10000
Model: 23HS22-2804S
Gross Weight: 0.77kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Japan

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

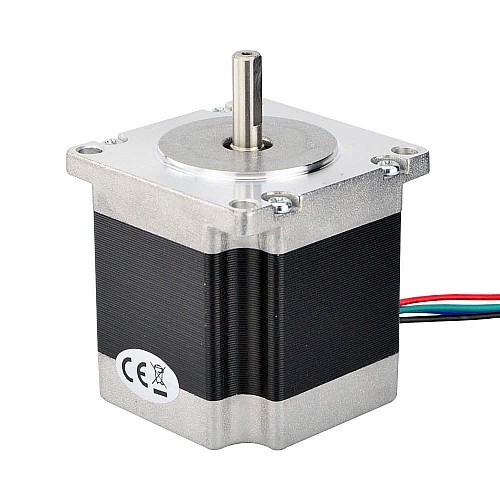

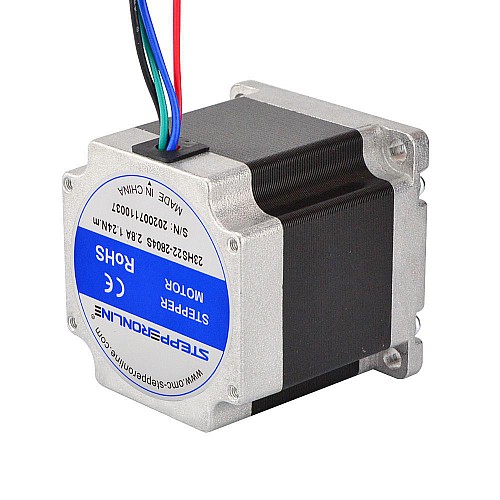

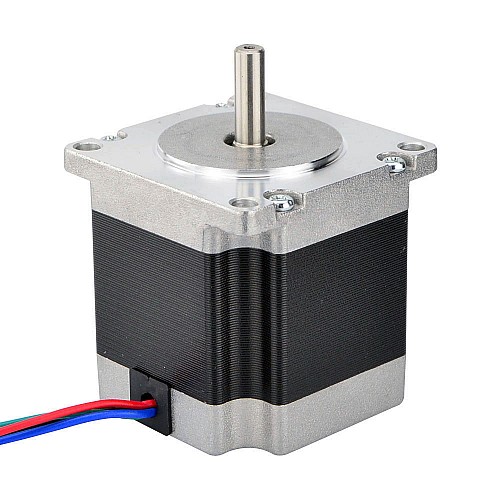

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.24Nm(175.6oz.in).

Electrical Specification

Manufacturer Part Number: 23HS22-2804S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.24Nm(175.6oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.92ohms±10%
Inductance: 2.68mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
Number of Leads: 4
Lead Length: 500mm
Weight: 700g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

We made minor adjustments to the parameters with no impact on performance.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	124
Holding Torque(oz.in)	175.6
Inductance(mH)	2.68
Phase Resistance(ohms)	0.92
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	700
