MG Series Planetary Gearbox Gear Ratio 50:1 Backlash 50arc-min for Nema 17 Stepper Motor

0 reviews - Write a review

C$26.73

5 + C$25.86

10 + C$25.03

50 + C$24.24

100 + C$23.52

In Stock: 10000
Model: MG17-G50
Gross Weight: 0.39kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

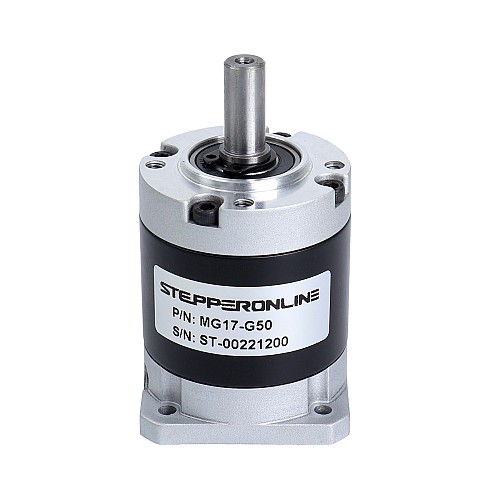

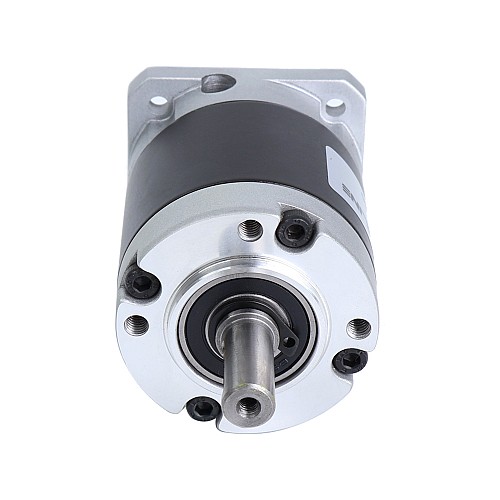

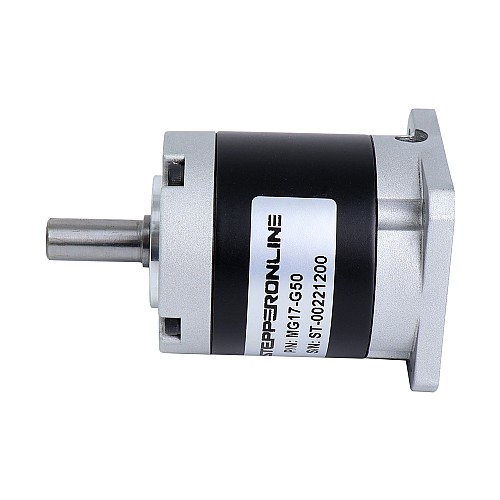

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to MG series gearbox, it with gear ratio 50:1 and a maximum 50arc-min backlash. Diffent with the EG series' steel gears, MG series' gears are made of powder metallurgy. It's an excellent choice for applications that require good accuracy but low cost.

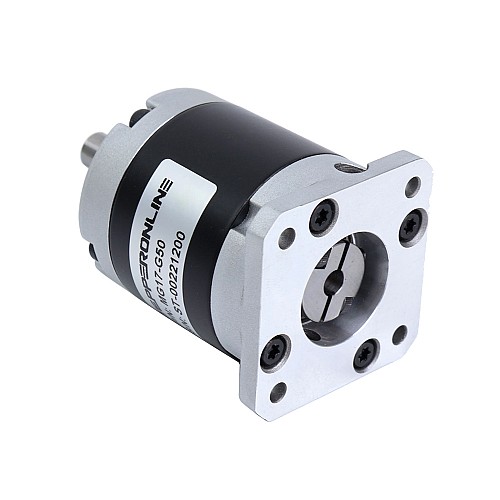

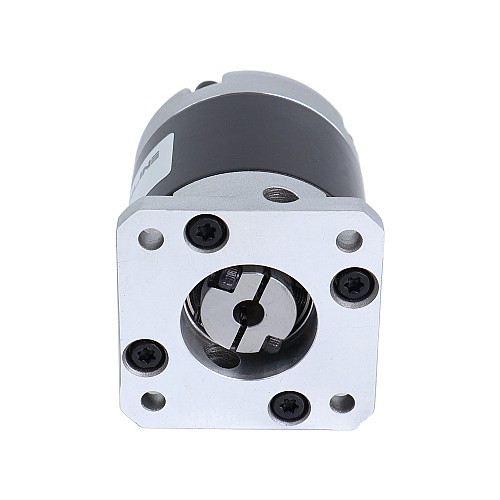

This inline planetary gearbox built-in an input shaft coupling which can match standard 5mm short shaft Nema 17 stepper motor, brushless dc motor and brushed dc motor.
One of matchable motor is 17HS15-1584S, for other motors, please contact our technical support to custom the motor shaft.

Gearbox Specifications

Part Number: MG17-G50
Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 50:1
Efficiency: 80%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=50arcmin
Max.Permissible Torque: 10Nm(88.51lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 51mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 6.5-10.5mm

This MG series gearboxes are only suitable for short shaft motors with a shaft length of 6.5-10.5mm.
If you need standard shaft(21.5-25mm) nema 17 stepper motors, please choose MGL series model: MGL17-G50

The suitable bracket is ST-M12.

Physical Specification
Backlash at No-load	<=50arcmin
Frame Size(mm)	42 x 42
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	50
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	6.5 - 10.5
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	21.5
Output Shaft Type	Keyway
Product Series	MG
Weight(g)	390
