NEMA 23 Integrated Easy Servo Motor 180W 3000rpm 0.6Nm(84.98oz.in) 20-50VDC Brushless DC Servo Motor

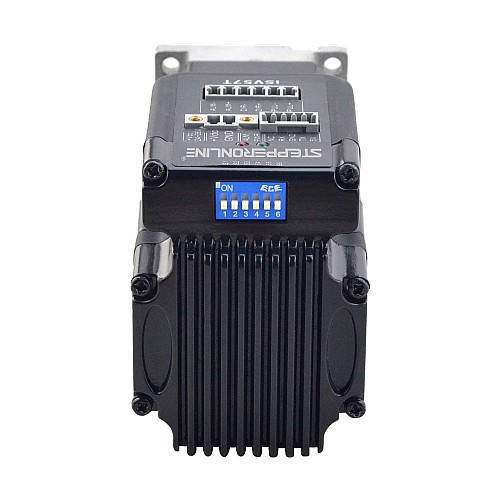

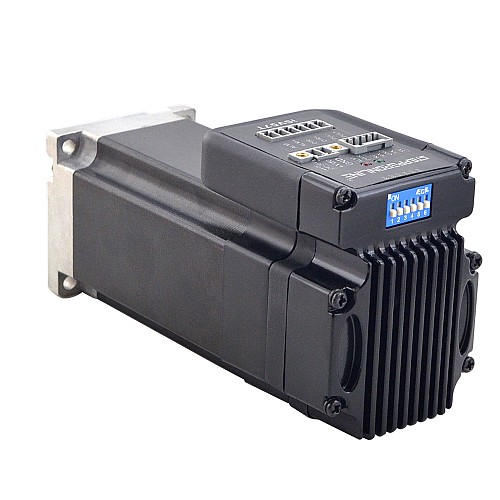

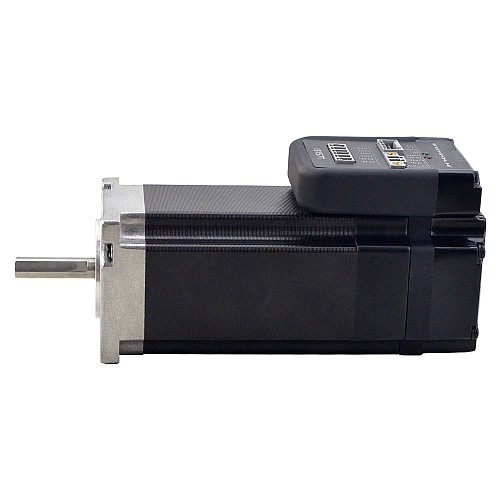

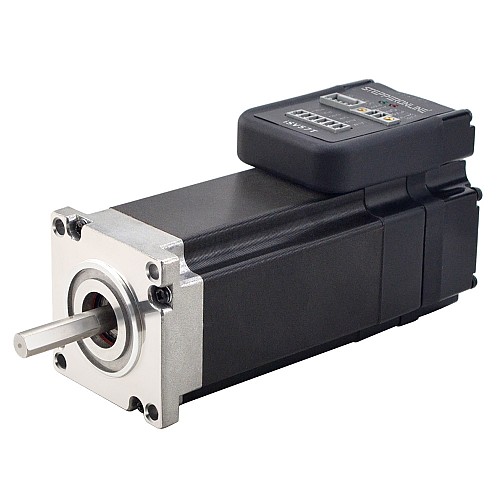

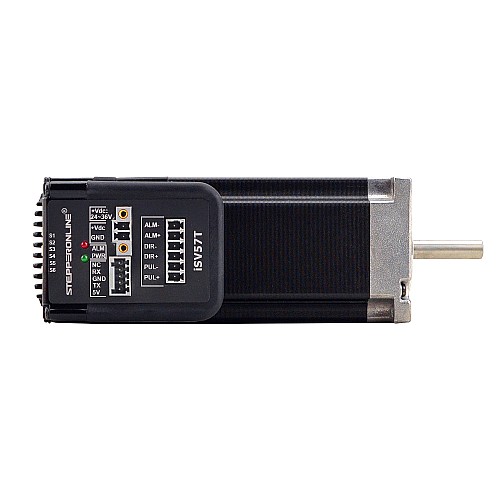

iSV57T-180 integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and with all components integrated, the iSV57T-180 can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs. Integrated compact size for saving mounting space & setup time, and reducing electrical interference.

Key Features

• Input voltage 20-50VDC, output peak current 0-6A
• Step & direction command input for position control
• Compatible mounting size with stepper motor
• Smooth motor movement and excellent respond time
• Isolated control inputs of Pulse, Direction
• In-position and fault outputs to external motion controllers for complete system controls
• Over voltage, over-current, and position-error protection

Electrical Specifications

• Manufacturer Part Number: iSV57T-180
• Rated Power(W): 180W
• Input Voltage: +20~50VDC(Typical 36VDC)
• Rated Torque(Nm/oz.in): 0.6/84.98(Nm/oz.in)
• Peak Torque(Nm/oz.in): 1.1/155.77(Nm/oz.in)
• Rated Speed(rpm): 3000rpm
• Peak Speed(rpm): 4000rpm
• Output Peak Current: 0~6A
• Logic Signal Current: 7~16mA(Typical 10mA)
• Pulse Input Frequency: 0~300kHz
• Pulse Voltage: 5V(Connect a 2K ohm resistor in series, if it is 24V)
• Isolation Resistance: 100MΩ

Physical Specifications

• Frame Size: 57 x 57mm
• Body Length: 148mm
• Shaft Diameter: 8mm
• D-cut Shaft Length: 27mm
• Shaft Length: 33mm
• Weight: 1.54kg

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ - 40℃
• Humidity: 40%RH - 90%RH
• Operating Temperature(Heat Sink): 70℃ Max
• Vibration: 10-50Hz / 0.15mm
• Storage Temperature: -20℃ - 65℃

Packing List

• 1 x iSV57T-180
• 1 x CABLE-PC-i(PJ): RS232 Cable
