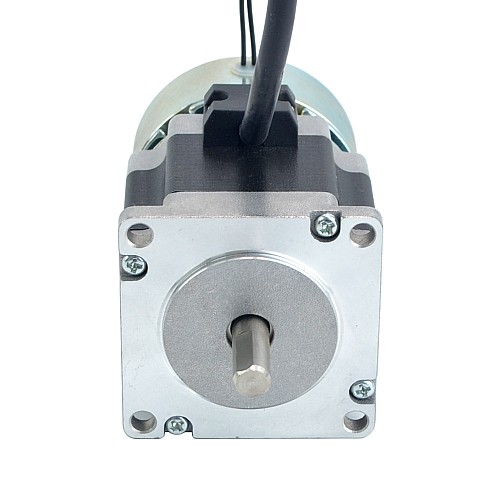

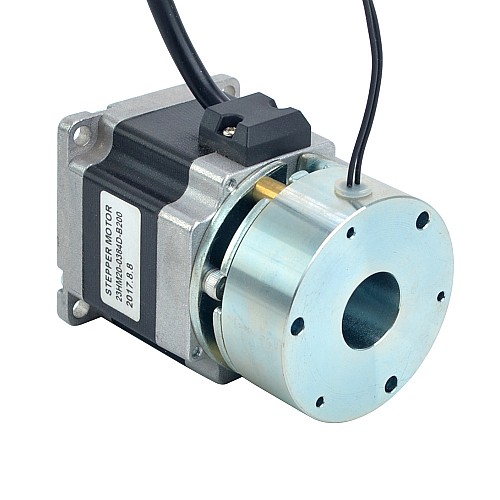

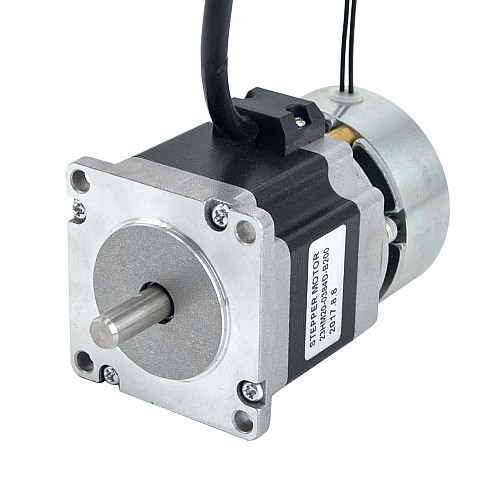

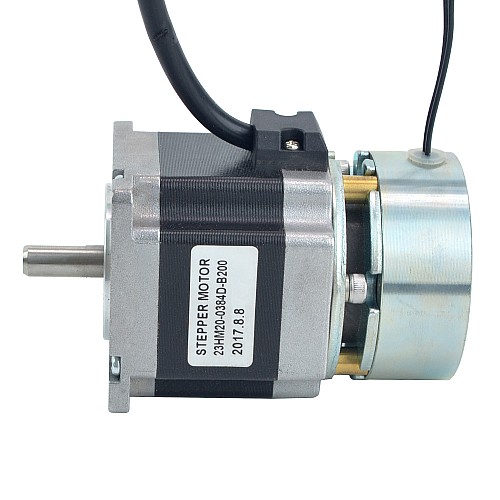

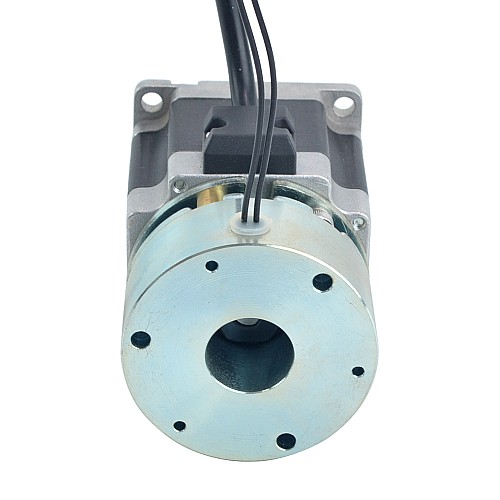

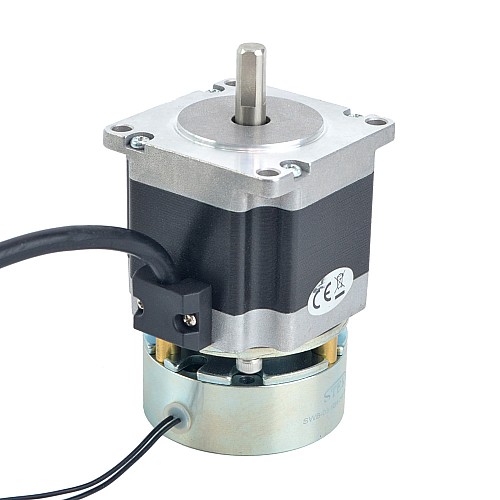

Nema 23 Stepper 0.9Nm(127.43oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
C$0.00
- In Stock: 1
- Model: 23HM20-0384D-B200
- Gross Weight: 1.15kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 15
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Motor Specification
- Manufacturer Part Number: 23HM20-0384D-B200
- Motor Type: Bipolar Stepper
- Step Angle: 0.9deg
- Holding Torque: 0.9Nm(127.43oz.in)
- Rated Current/phase: 0.38A
- Phase Resistance: 32ohms
- Inductance: 110mH±20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 52mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
Brake Specification
- Brake Type: Non-excited
- Static Friction Torque: 2Nm(283.22oz.in)
- Moment of Inertia : 3.8x10-6 kg.cm2
- Voltage: 24V
- Power: 11.5W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.4kg
Connection
A+ |
A- |
B+ |
B- |
Black |
Green |
Red |
Blue |
Product Type | |
Product Type | Motor w/ Encoder & Brake & Gearbox |
Electrical Specification | |
Holding Torque(Ncm) | 90 |
Holding Torque(oz.in) | 127.43 |
Phase Resistance(ohms) | 32 |
Rated Current(A) | 0.3 |
Brake Specification | |
Brake Power(W) | 11.5 |
Brake Rated Voltage(V) | 24 |
Brake Torque(Ncm) | 200 |
Brake Torque(oz.in) | 283.22 |
Brake Type | Power Off Brake |
Physical Specification | |
Frame Size(mm) | Nema 23 (57 x 57) |
IP Rating | 40 |
Shaft Diameter(mm) | 8 |
Shaft Length(mm) | 21 |
File | Size | |
---|---|---|
23HM20-0384D-B200.pdf | 155.83KB | Download |
