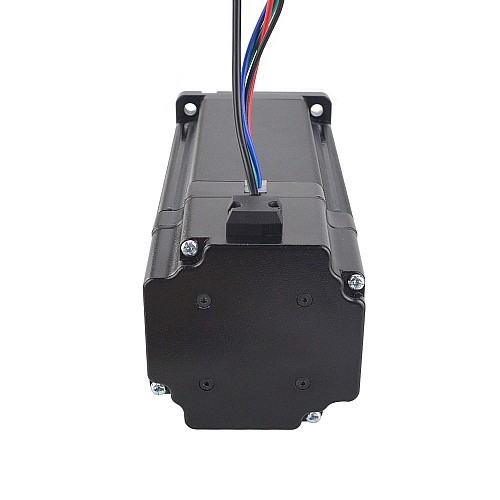

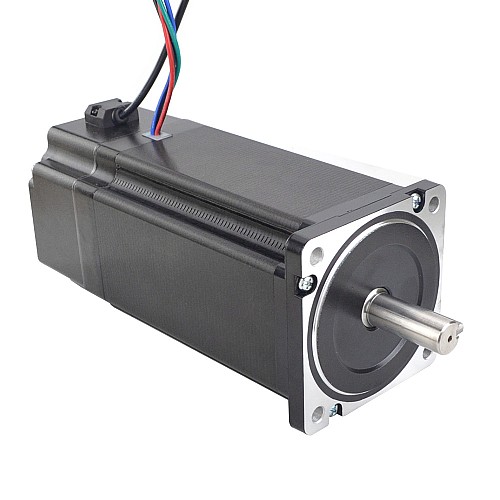

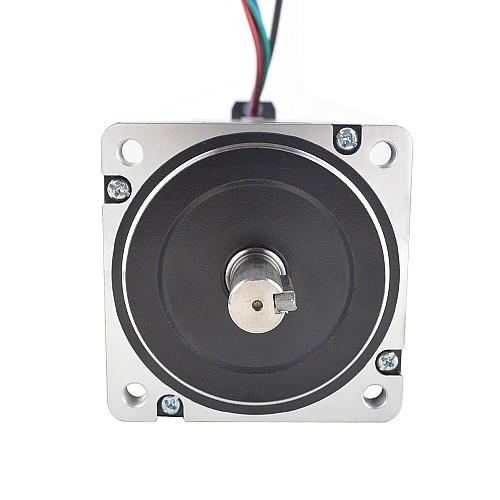

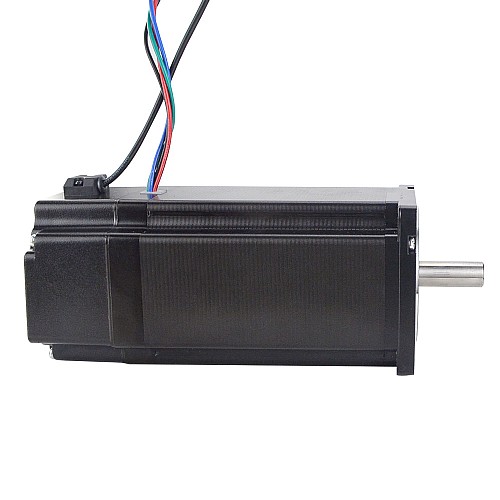

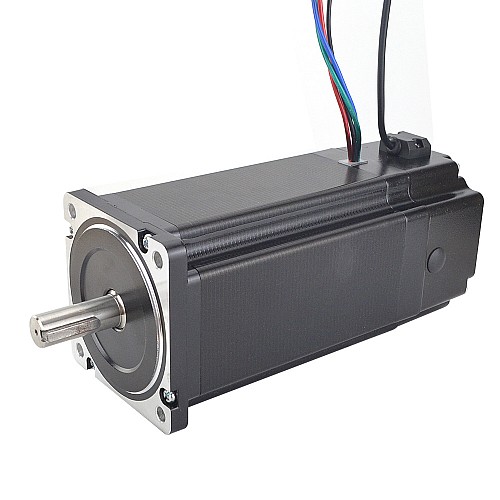

P Series Nema 34 Stepper Motor 12Nm(1700oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$207.56

5 + C$197.79

10 + C$188.89

50 + C$180.77

100 + C$173.31

In Stock: Pre-order
Model: 34BK50-120
Gross Weight: 6.50kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 122

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 34BK50-120
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12Nm(1700oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.72ohms
Inductance: 7.3mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 150.6mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 5.0kg

Brake Connections

Red--24V+
Red--24V-
5.0Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The alternative product is 34HS61-6004D-B70.

Electrical Specification
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1700
Phase Resistance(ohms)	0.72
Rated Current(A)	6.0
Stepper Motor with	Brake
Brake Specification
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Torque(oz.in)	708.06
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
