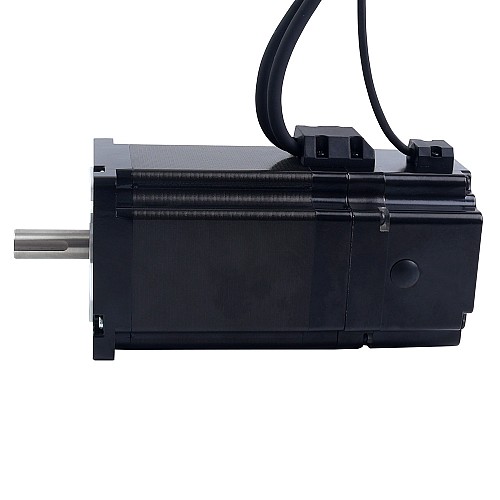

S Series Nema 34 Closed Loop Stepper Motor 8.0Nm(1132.89oz.in) with 7.0Nm(991.28oz.in) Electromagnetic Brake

New

S Series Nema 34 Closed Loop Stepper Motor 8.0Nm(1132.89oz.in) with 7.0Nm(991.28oz.in) Electromagnetic Brake

0 reviews - Write a review

C$163.50

5 + C$155.41

10 + C$148.10

50 + C$141.44

100 + C$135.36

In Stock: 10000
Model: 34HS45-6004D-E1000-B700
Gross Weight: 5.05kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

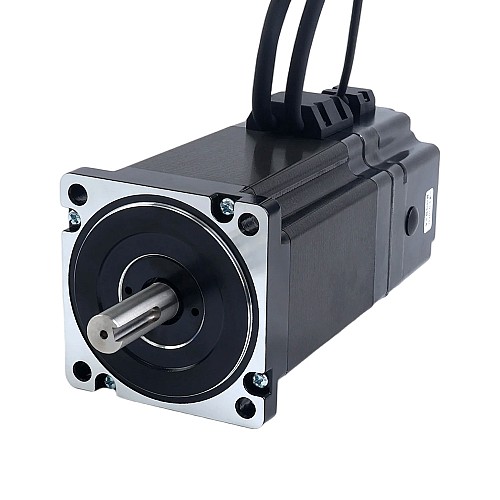

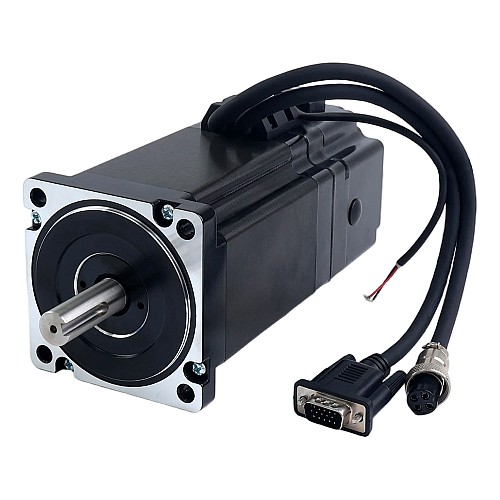

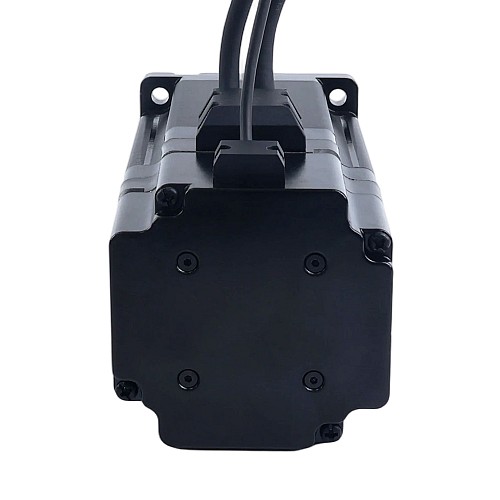

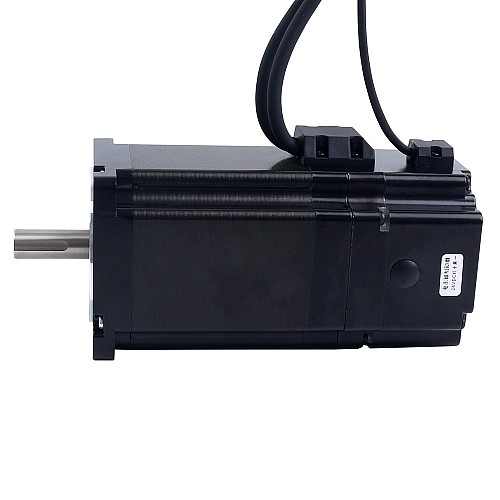

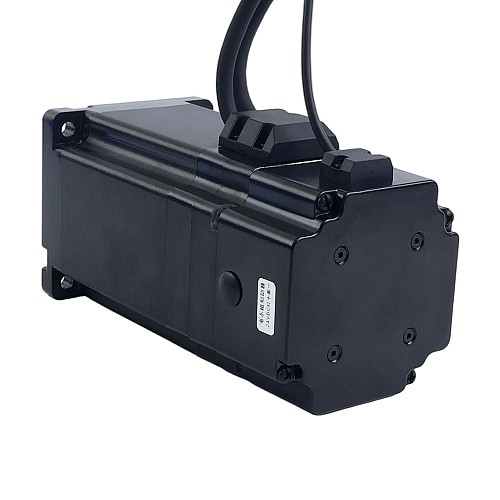

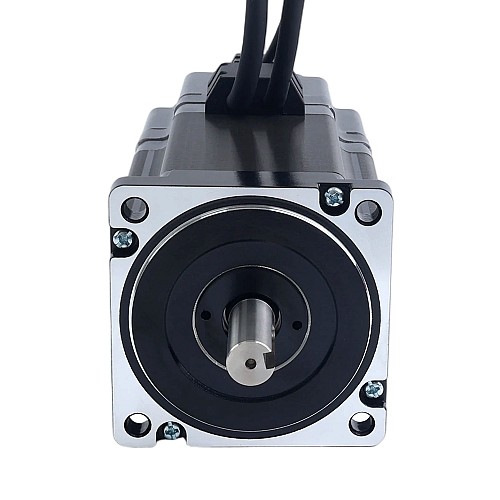

This is a S series Nema 34 closed loop stepper motor with a holding torque of 8.0Nm(1132.89oz.in) and rated current of 6.0A. Enquipped with a 1000ppr optical incremental encoder and a 24V 7.0Nm(991.28oz.in) electromagnetic brake, it combines the precision and reliability of closed-loop control with the safety and energy efficiency of a power-off brake. It is primarily used in automated equipment such as vertical axes and robots that require power-off locking and precise positioning.

Electrical Specification

Manufacturer Part Number: 34HS45-6004D-E1000-B700
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.0Nm(1132.89oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.4ohms
Inductance: 3.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 177mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Brake Cable Length: 180mm
Motor Cable Length: 300mm
Encoder Cable Length: 300mm
Weight: 4.76kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Brake Connections

Red--24V+
Black--24V-
7.0Nm(991.28oz.in)

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	GND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	800
Inductance(mH)	3.6
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.4
Rated Current(A)	6
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.18
Brake Power(W)	4.32
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	700
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	177
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
