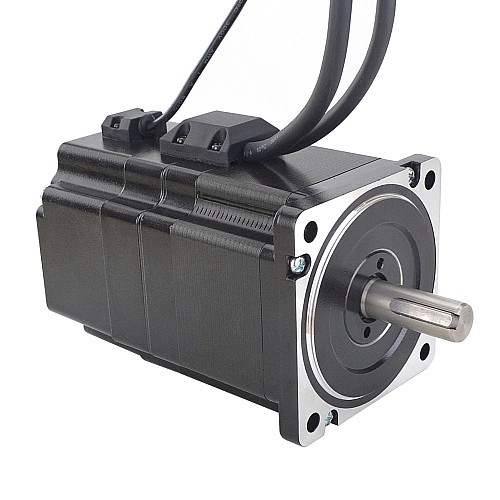

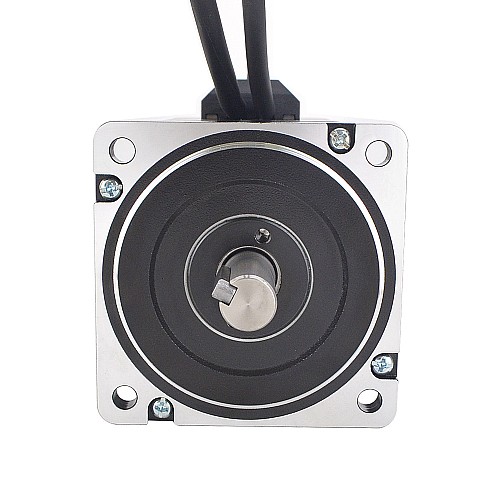

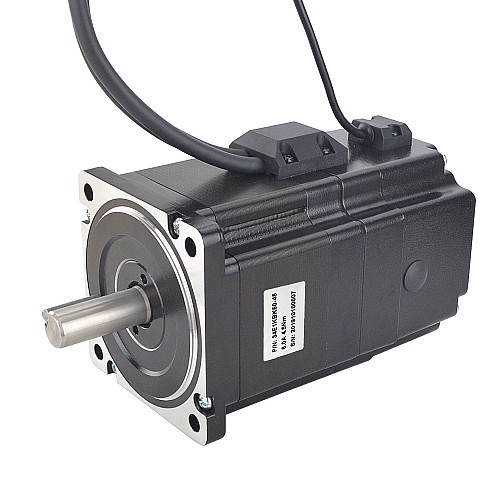

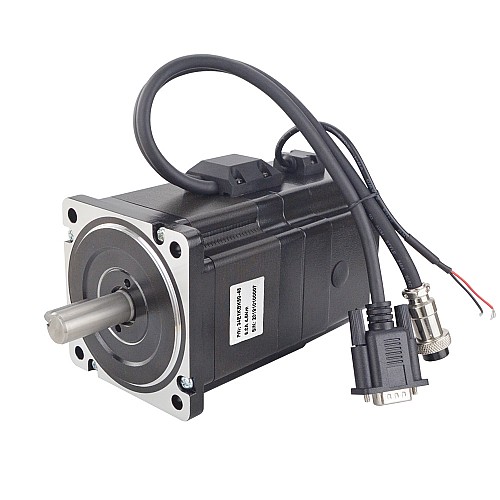

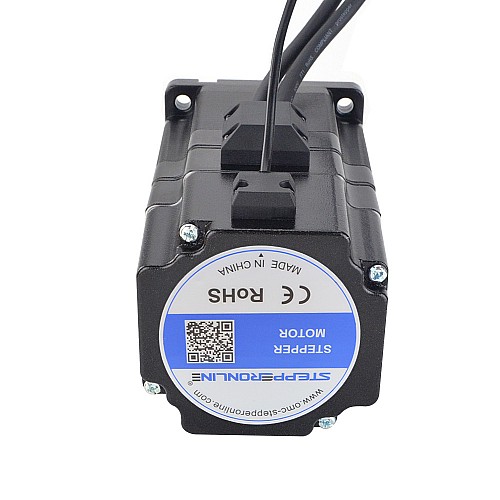

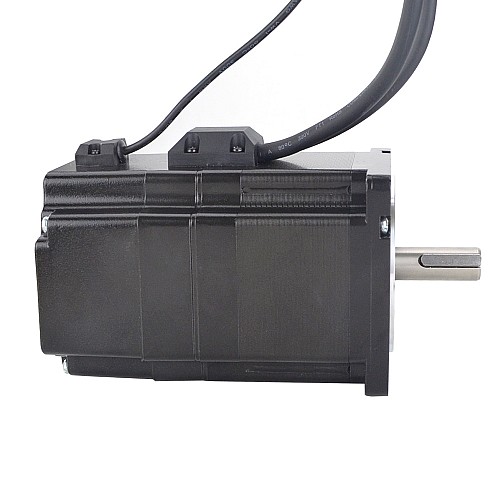

P Series Nema 34 Closed Loop Stepper Motor 4.5Nm(637.38oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$191.38

5 + C$182.38

10 + C$174.18

50 + C$166.69

100 + C$159.81

In Stock: Pre-order
Model: 34E1KBK50-45
Gross Weight: 3.59kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 105

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 34E1KBK50-45
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 4.5Nm(637.38oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.34ohms
Inductance: 2.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 74mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 270mm
Weight: 2.1kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Brake Connections

Red--24V+
Black--24V-
5.0Nm

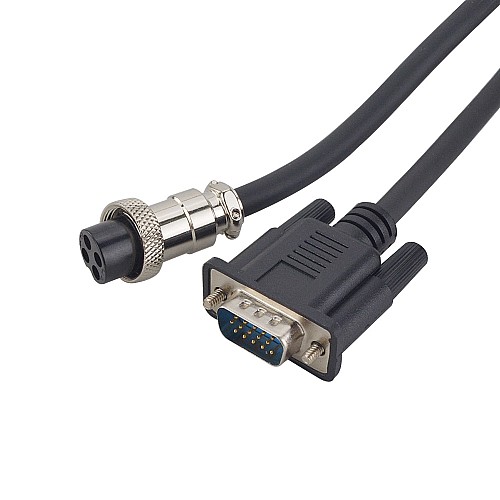

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	450
Inductance(mH)	2.4
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.34
Rated Current(A)	6
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.19
Brake Power(W)	4.8
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	74
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Shared Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
