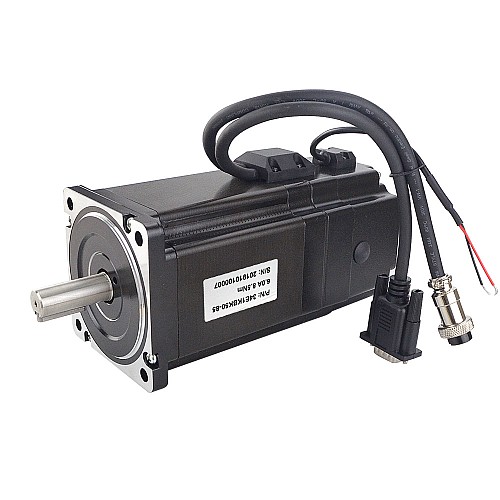

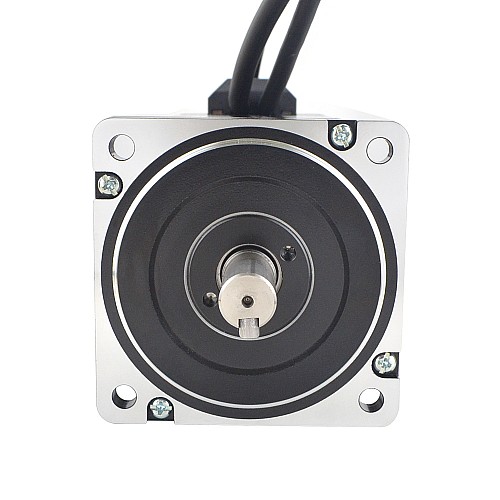

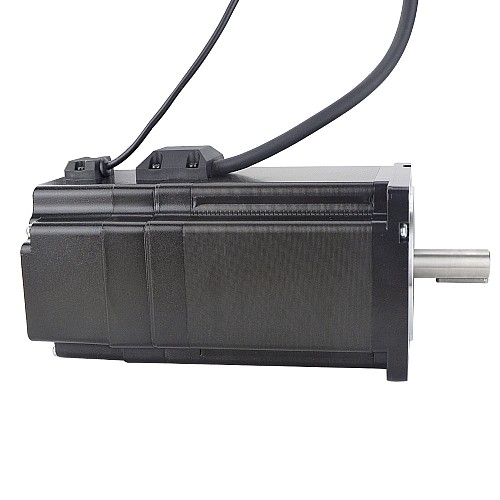

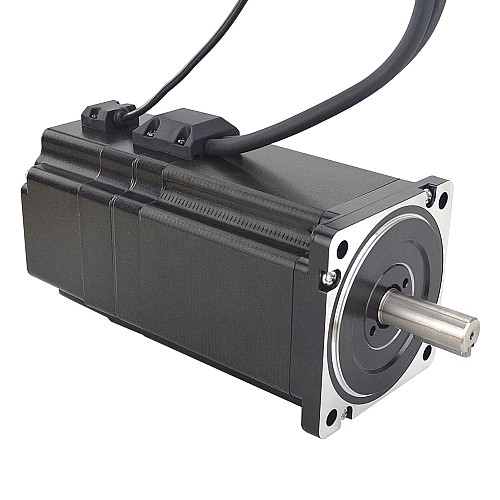

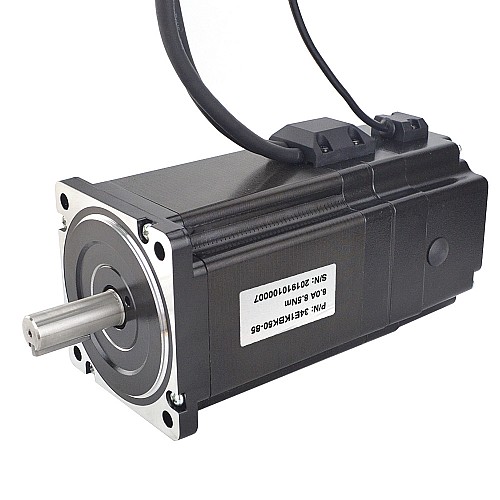

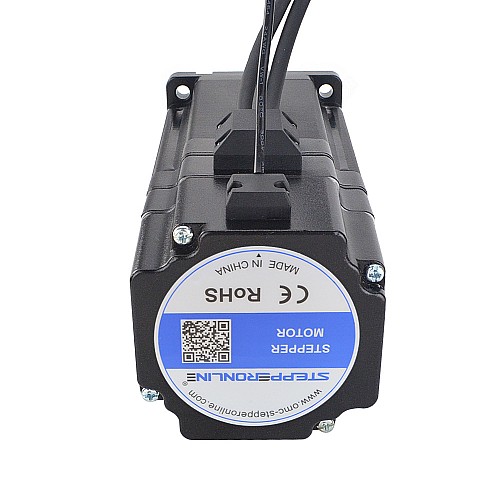

P Series Nema 34 Closed Loop Stepper Motor 8.5Nm(1203.94oz.in) with Electromagnetic Brake

1 reviews - Write a review

C$212.13

5 + C$202.15

10 + C$193.07

50 + C$184.76

100 + C$177.14

In Stock: 10000
Model: 34E1KBK50-85
Gross Weight: 5.10kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 34E1KBK50-85
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1203.94oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.54ohms
Inductance: 5.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 112.3mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 270mm
Weight: 3.6kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Brake Connections

Red--24V+
Red--24V-
5.0Nm

Connection3

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

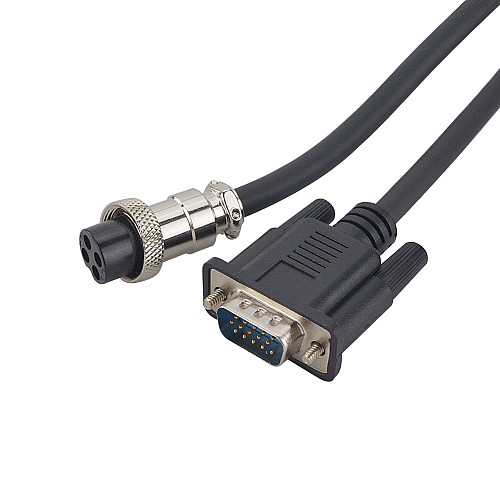

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	850
Inductance(mH)	5
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.54
Rated Current(A)	6
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.19
Brake Power(W)	4.8
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	112.3
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
