T7 Series EtherCAT 1000W AC Servo Motor Kit 3000rpm 3.18Nm 23-Bit Encoder IP67

Discontinued

T7 Series EtherCAT 1000W AC Servo Motor Kit 3000rpm 3.18Nm 23-Bit Encoder IP67

0 reviews - Write a review

C$0.00

In Stock: 1
Model: T7-EC1000H2A1-M23
Gross Weight: 4.39kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

The T7 series 1000W 3000rpm 3.18Nm 23-bit AC servo products are EtherCAT high-performance digital AC servos designed for high-precision position/speed/torque control, providing a perfect solution for various applications, fault detections and error handling that makes communication more reliable over long distances. Using EtherCAT communication protocols, the connections between master device and slave stations can be realized using only LAN cables.

Combined with abundant features like Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM), etc, and with encoder resolution 23bit, it can provide machines a intelligent performance.
The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption.

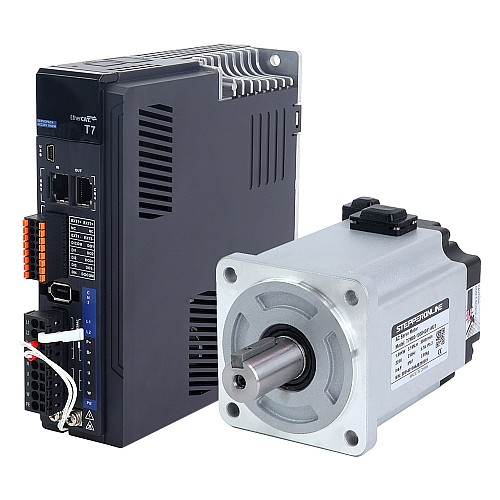

Items in kit

1 x T7-1000EC: 1000W AC Servo Motor EtherCAT Driver
1 x T7M80-1000H2A1-M23: 1000W AC Servo Motor 3000rpm 3.18Nm 23-Bit Encoder IP67
1 x CMST1M5-2: 1.5m Motor Cable with IP67 Connector
1 x CEST1M5-2: 1.5m Encoder Cable with IP67 Connector
1 x Servo Driver Debugging Cable

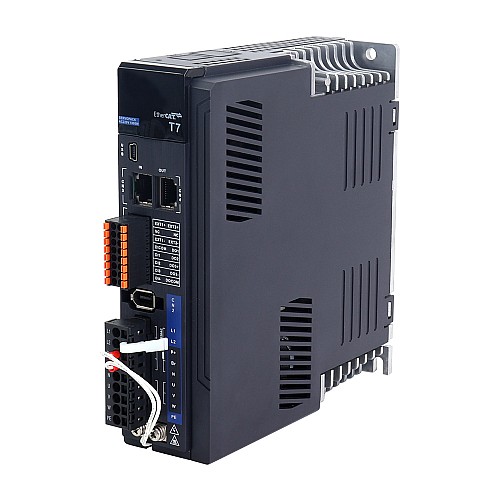

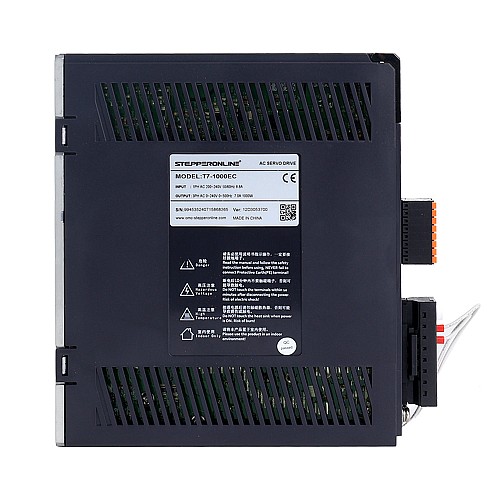

Servo Driver Specification

Part Number: T7-1000EC
EtherCAT communication
Probe Input
4 inputs and 3 outputs
Rated voltage 220VAC 1ph
Rated power 1000W
Available 23-bit encoder
Automatic motor identification
Dimension: 50*175*156mm
Control Mode: Position Mode, Velocity Mode, Torque Mode

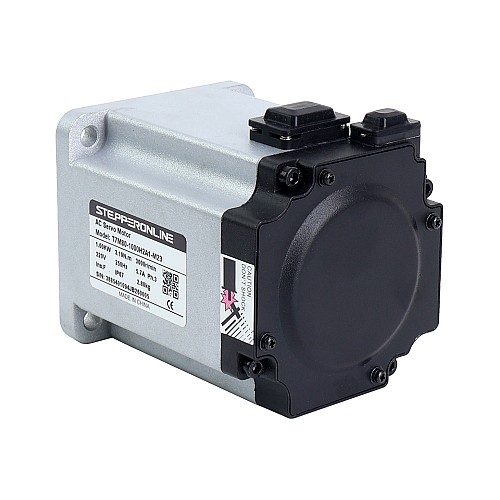

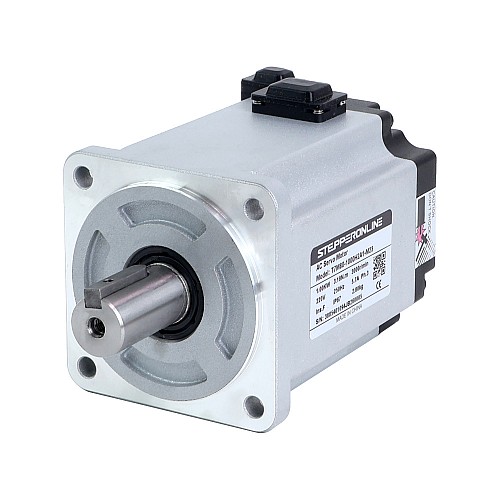

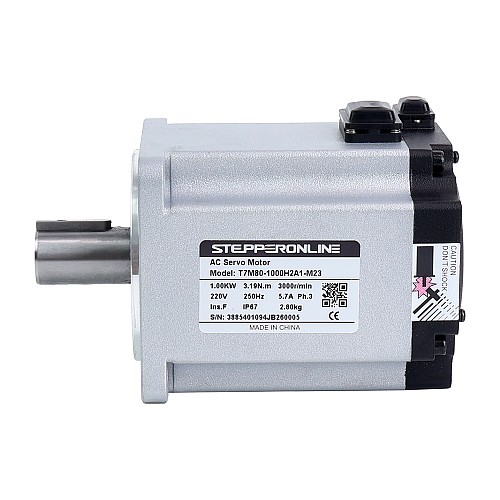

Servo Motor Specification

Part Number: T7M80-1000H2A1-M23
Rated Voltage: 220VAC
Rated Power: 1000W
Rated Torque: 3.18Nm
Peak Torque: 9.54Nm
Rated Speed: 3000rpm
Peak Speed: 5000rpm
Rated Current: 5.7A
Peak Current: 17.7A
Torque Const: 0.56N.m/A
Back EMF Const: 38.3V/krpm
Resistance: 1.08ohm
Inductance: 5.6mH
Inertia: 2.0kg*m²*10^-4
Poles: 10
Encoder: 23bit magnetic encoder
IP Rating: IP67
Cable Length: 1.5m(optional lengths are 3m, 5m, 10m)
Shaft diameter: 19mm
Mass Weight: 2.8Kg

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is A6-EC1000H2A1-M17.

Electrical Specification
Control Modes	EtherCAT
Encoder Resolution	23bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	220VAC
Peak Speed(rpm)	5000
Peak Torque(Nm)	9.54
Rated Power(W)	1000
Rated Speed(rpm)	3000
Rated Torque(Nm)	3.18
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	80 x 80
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	67
Shaft Diameter(mm)	19

File	Size
T7M80-1000H2A1-M23.pdf	190.7KB	Download
T7_Servo_Quick_Start.pdf	1.27MB	Download
T7_Simple_Manual.pdf	741.05KB	Download
T7M80-1000H2A1-M23.STEP	17.32MB	Download
T7-1000EC.stp	14.94MB	Download
T7-EC_V1.04.xml	163.14KB	Download
T7_Servo_Full_Manual.pdf	16.01MB	Download
MotionStudio_Neutral_v1.4.10.zip	19.85MB	Download
