Used - Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 51:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 51:1 Planetary Gearbox - 17HS19-1684S-PG51 | StepperOnline CA

Used -58 %

Used - Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 51:1 Planetary Gearbox

0 reviews - Write a review

C$44.65

C$18.71

In Stock: 10000
Model: 17HS19-1684S-PG51-USED
Gross Weight: 0.70kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

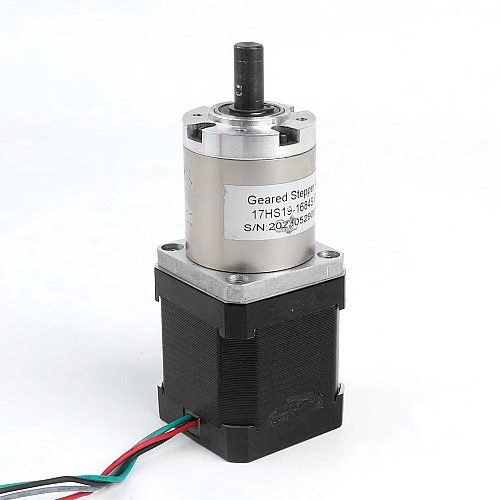

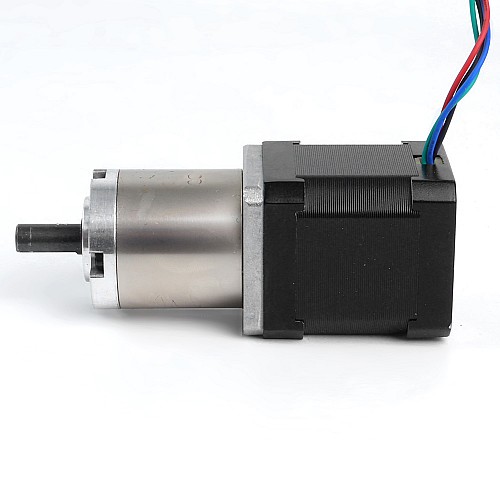

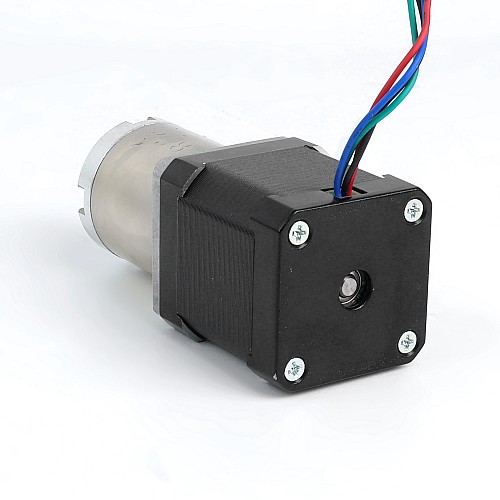

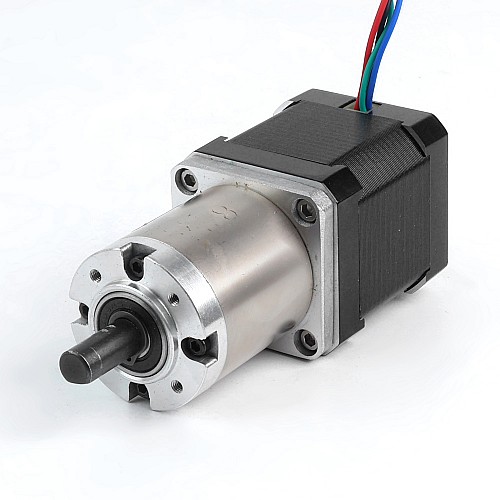

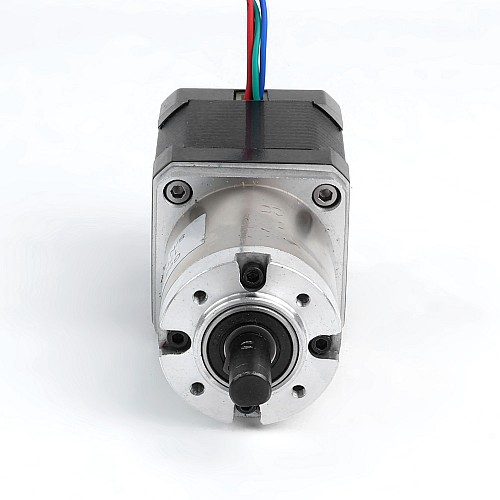

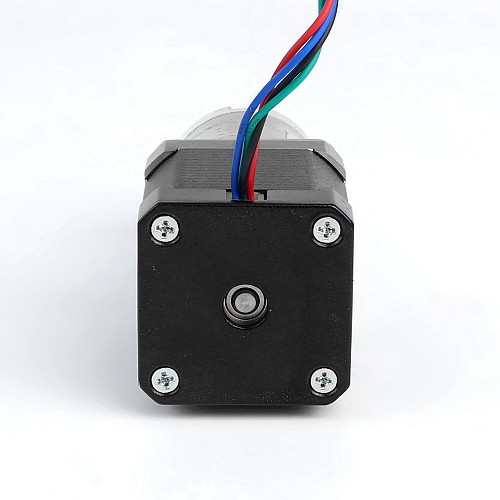

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 50.9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG51
Motor Type: Bipolar Stepper
Step Angle: 0.035deg
Holding Torque without Gearbox: 52Ncm(73.6oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.8ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50.9:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 42.7mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 620g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

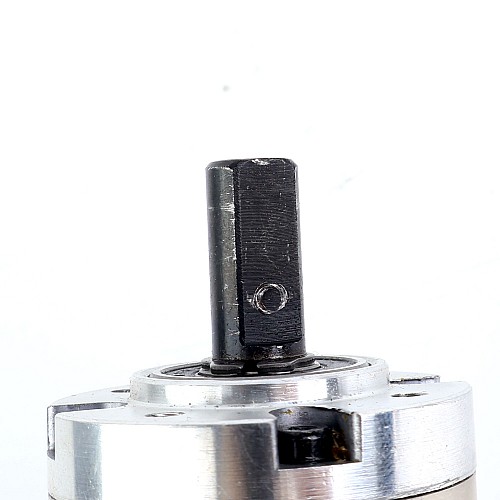

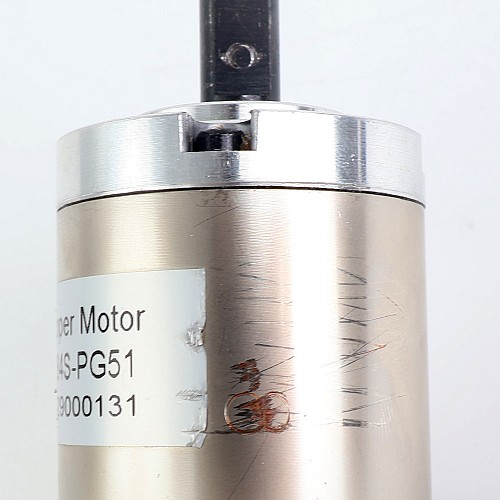

Product status note: the motor has scratches of varying degrees and the motor shaft has obvious indentations.

Product Type
Product Condition	Used
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.52
Inductance(mH)	3.2
Phase Resistance(ohms)	1.8
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	90.7
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	50.9
Gearbox Type	Spur Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	620
