Used - Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires

Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires - 23HS32-4004S | StepperOnline CA

Used -58 %

Used - Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires

0 reviews - Write a review

C$28.00

C$11.75

In Stock: 10000
Model: 23HS32-4004S-USED
Gross Weight: 1.40kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 3

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 23HS32-4004S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 2.4Nm(339.87oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.65ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 82mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 1.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

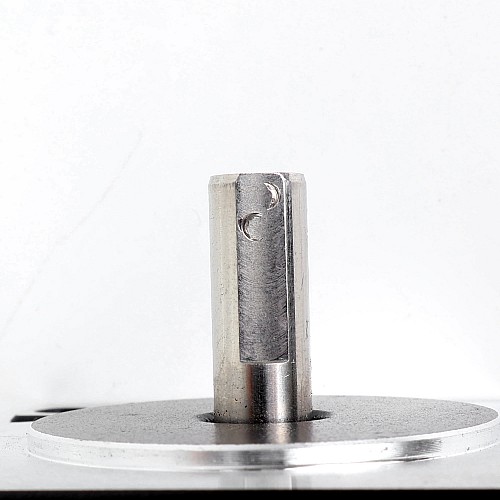

Product status note: the motor shaft has obvious indentations and there is minor paint peeling on the motor surface.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	240
Holding Torque(oz.in)	339.87
Inductance(mH)	3.2
Phase Resistance(ohms)	0.9
Rated Current(A)	4.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	82
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1200
