Nema 11 External Acme Linear Stepper Motor 1.0A 32.2mm Stack w/ Optical Rotary Encoder 300PPR

0 reviews - Write a review

C$108.04

5 + C$103.59

10 + C$99.49

50 + C$95.70

100 + C$92.17

In Stock: 10000
Model: 11E13S1004HD5-180RS-E22-300
Gross Weight: 0.30kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

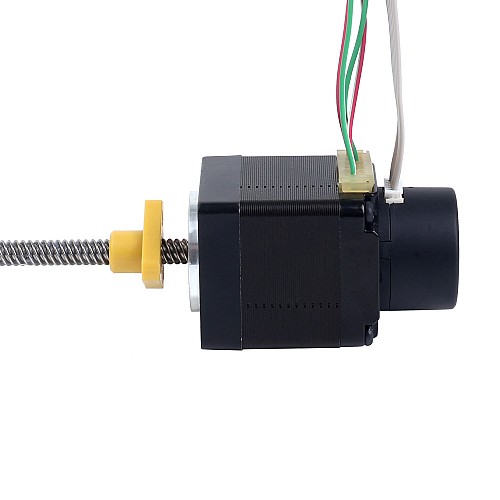

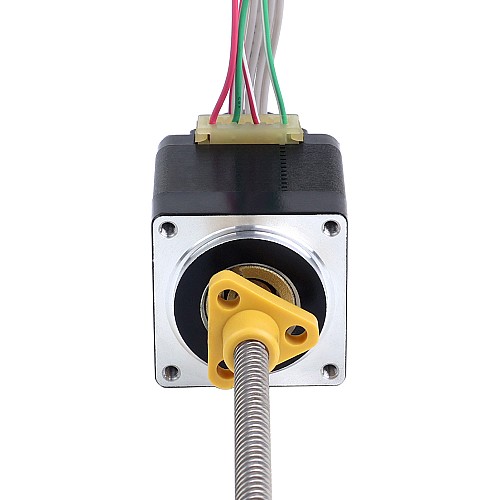

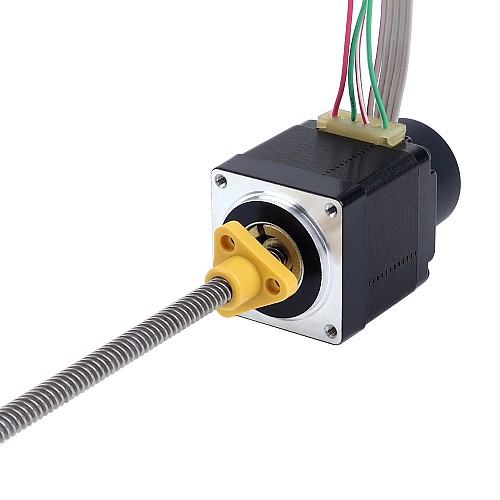

This is a Nema 11 linear stepper motor integrated with a 300ppr optical rotary encoder and equipped with a ACME lead screw with a length of 180mm(7.0866"), a diameter of 4.76mm (0.1874"), a lead of 5.08mm (0.2") and a POM nut. After installing the encoder, the control accuracy and stability of the linear motor are improved. It is widely used in automated production, transportation, medical equipment, stage equipment, robots, etc.

Motor Specification

Manufacturer Part Number: 11E13S1004HD5-180RS-E22-300
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.05Nm(7.08oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 2.1ohms
Inductance: 1.5mH±20%(1KHz)
Frame Size: 28 x 28mm
Body Length: 32.2mm
Lead Screw Length: 180mm(7.0866")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0254mm(0.001")
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Number of Thread Starts: 4
Cable Length: 500mm

Encoder Specification

Encoder Type: Optical Incremental
Driving Voltage: 5VDC
Output current: ≤20mA
Resolution: 300ppr
Output Signal: 2 Channels
Shaft Diameter: Φ4mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-
Color	Red	Red/White	Green	Green/White

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	5
Holding Torque(oz.in)	7.08
Inductance(mH)	1.5
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	2.1
Rated Current(A)	1.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	32.2
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	180
Lead Travel/Revolution(mm)	5.08
Lead Travel/Step(mm)	0.0254
Linear Motor Type	External(Acme)
No. of Lead	4
With Encoder	Yes

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

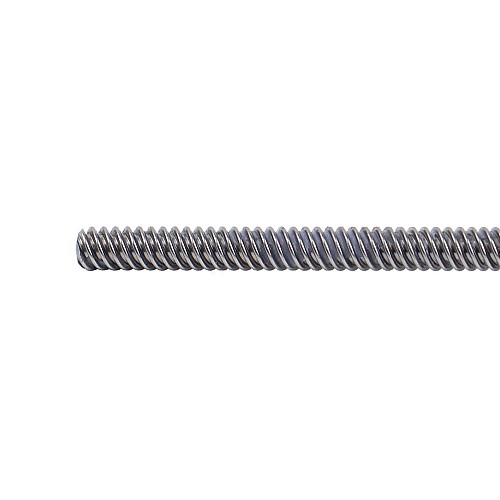

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
