Nema 11 Stepper Motor Bipolar L=32mm w/ Gear Ratio 100:1 Planetary Gearbox

Discontinued

Nema 11 Stepper Motor Bipolar L=32mm w/ Gear Ratio 100:1 Planetary Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11HS12-0674S-PG100
Gross Weight: 0.31kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

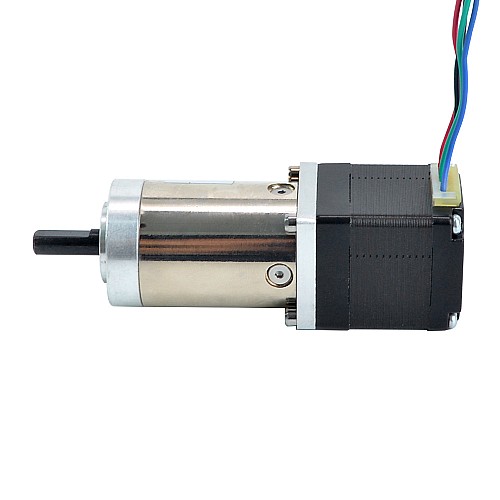

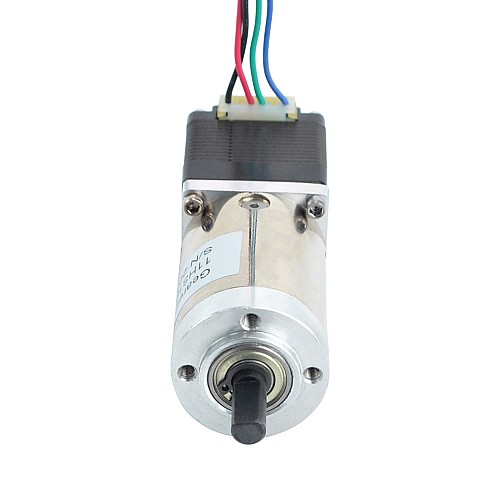

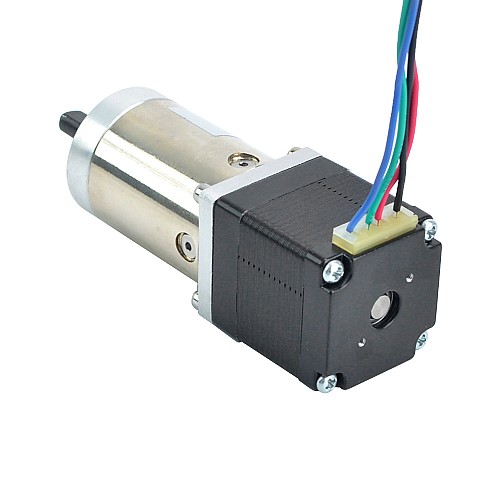

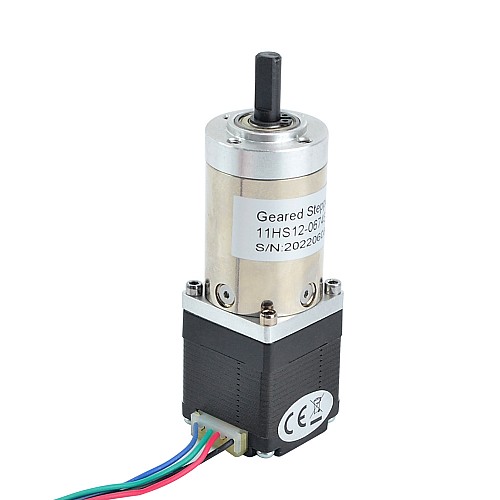

This Nema 11 stepper motor with 32mm body and 0.67A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS12-0674S-PG100
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 7Ncm(9.920oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 99.548
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 32mm
Gearbox Length: 44.6mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 300mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11HS12-0674D1-PG100.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.07
Inductance(mH)	4.0
Phase Resistance(ohms)	5.6
Physical Specification
Backlash at No-load	<=3deg
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	99.548
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
