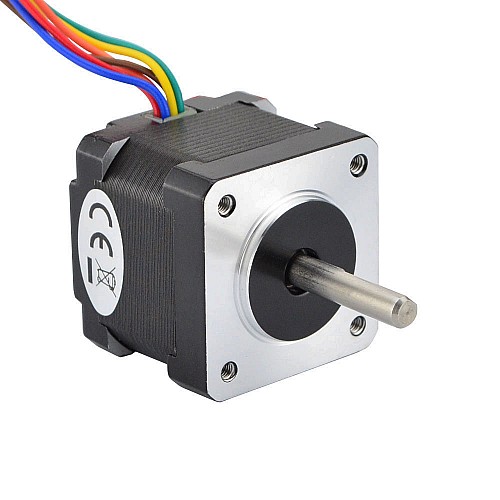

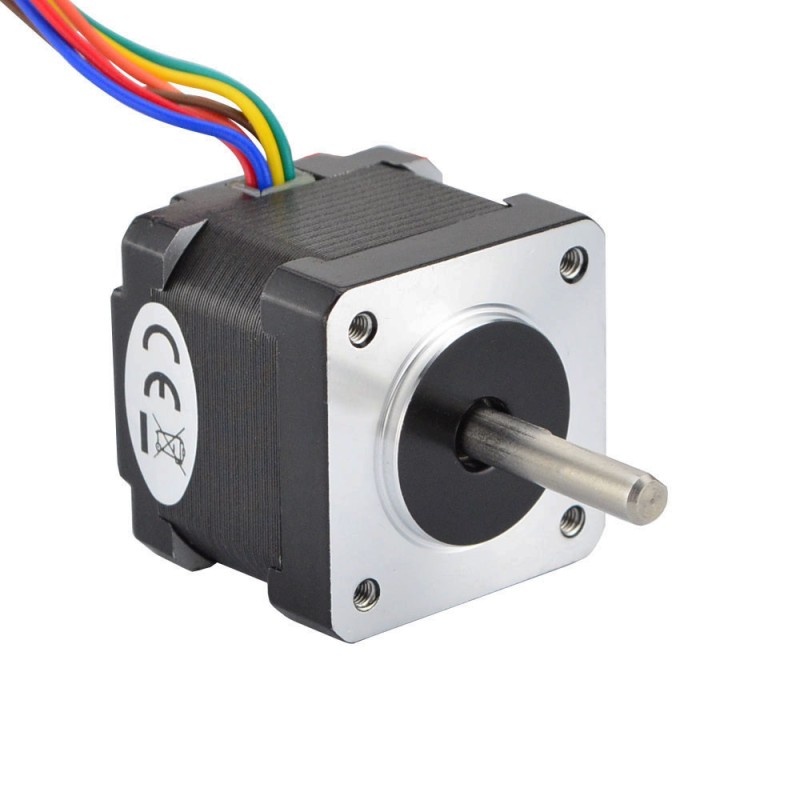

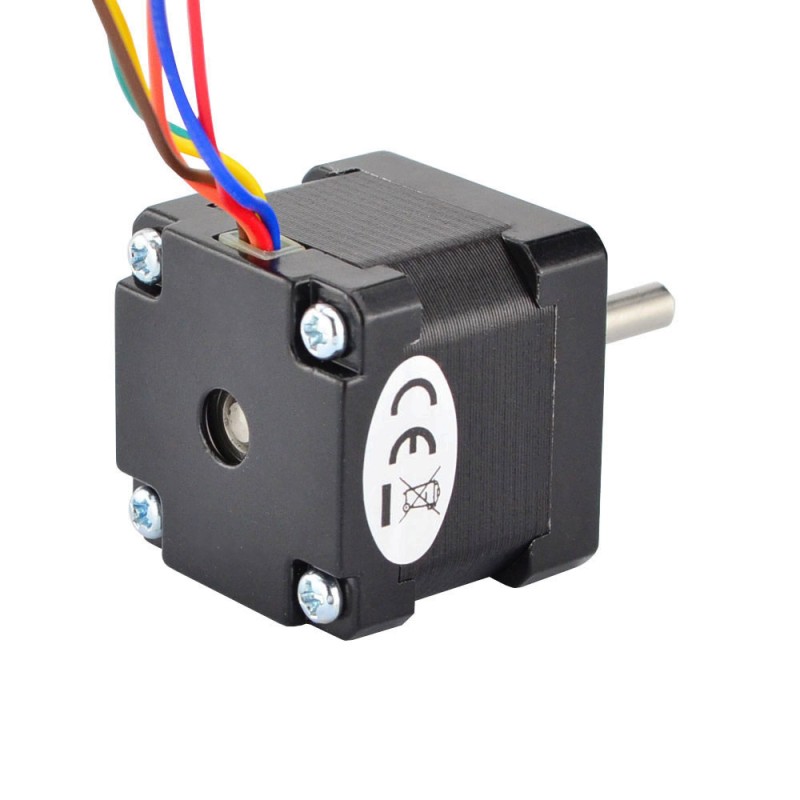

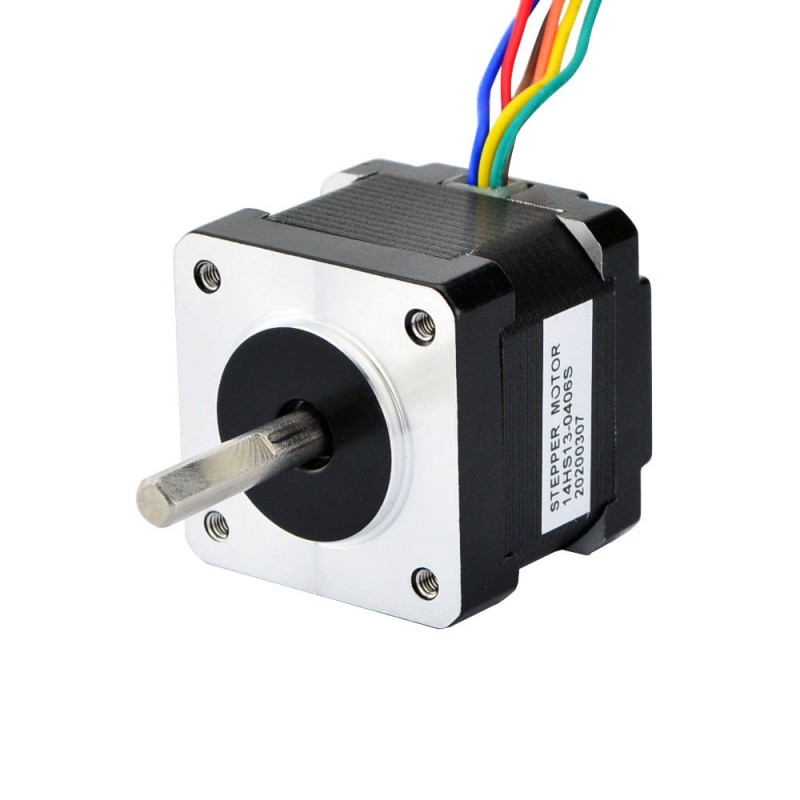

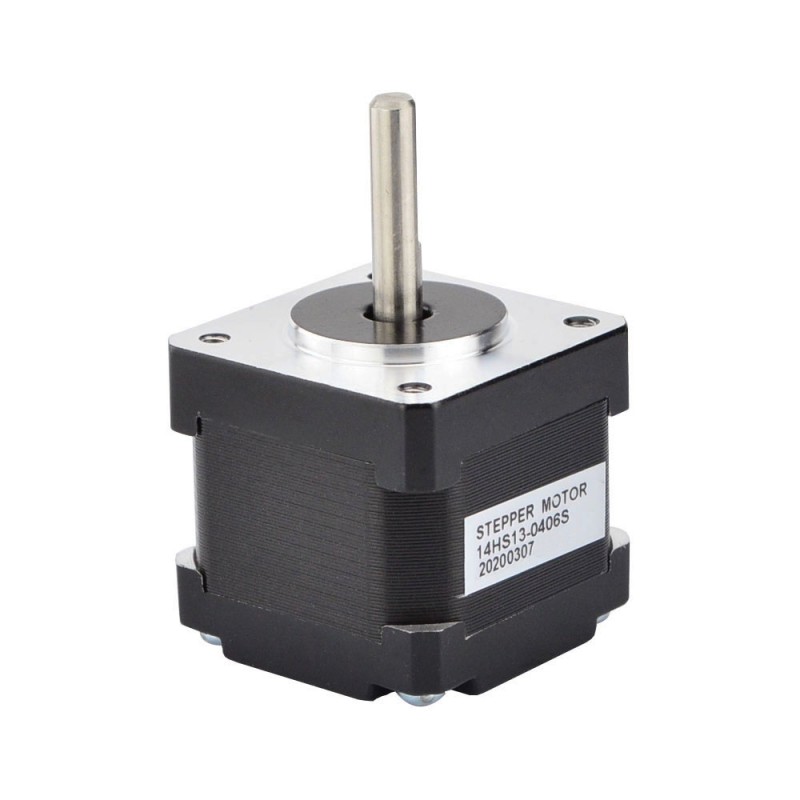

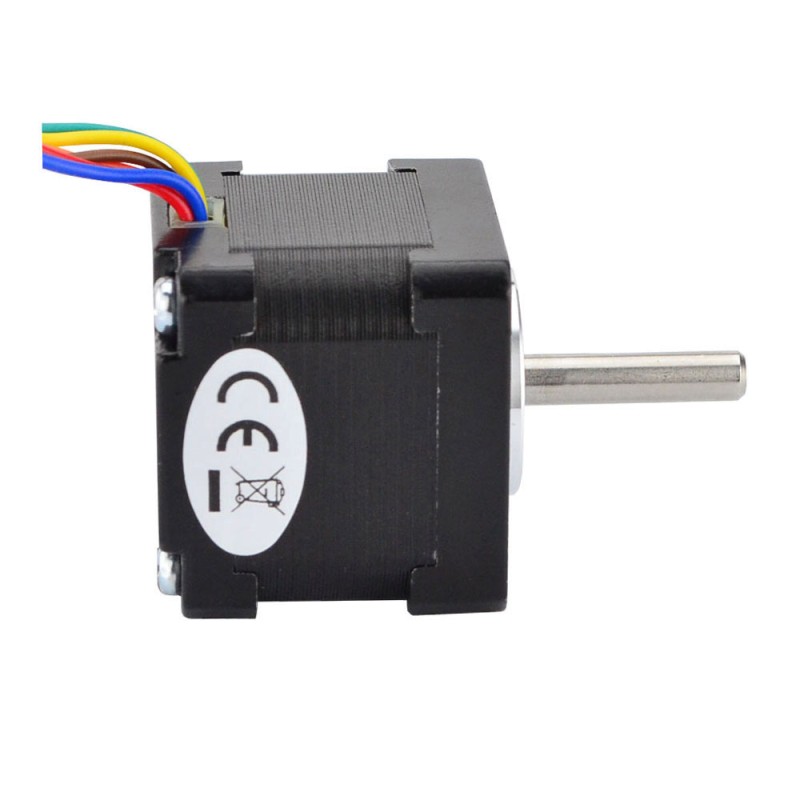

Name: Nema 14 Unipolar 1.8deg 10Ncm(14.16oz.in) 0.4A 35x35x34mm 6 Wires
Brand: STEPPERONLINE
SKU: 14HS13-0406S
Price: 12.30 CAD
Availability: PreOrder

Nema 14 Unipolar 1.8deg 10Ncm(14.16oz.in) 0.4A 35x35x34mm 6 Wires - 14HS13-0406S | StepperOnline CA

Pre-order

14HS13-0406S

Output Shaft TypeD

No. of Lead6

Single Shaft/Dual ShaftSingle Shaft

Holding Torque(Ncm)10

Question

Ordering & ComplianceFor purchasing

Min. order: 10

Downloads

14HS13-0406S_Torque_Curve.pdfPDF · 101.77KB 14HS13-0406S_Full_Datasheet.pdfPDF · 119.17KB

Same series

Model	Output Shaft Type	No. of Lead	Single Shaft/Dual Shaft	Holding Torque(Ncm)	Price	Stock
14HS08-0404S	O	4	Single Shaft	5	C$13.24	In stock
14HS10-0404S	D	4	Single Shaft	14	C$13.24	In stock
14HS11-1004S	D	4	Single Shaft	12.5	C$14.69	In stock
14HS13-0406S	D	6	Single Shaft	10	C$12.30	Backorder
14HS13-0804D	O	4	Dual Shaft	18	C$13.44	In stock
14HS13-0804S	D	4	Single Shaft	18	C$12.30	In stock
14HS13-1004S-EGS	O	4	Single Shaft	18	C$13.12	In stock
14HS14-1254H	Hollow	4	Dual Shaft	16	C$21.29	In stock
14HS17-0504S	D	4	Single Shaft	23	C$15.14	In stock
14HS19-2004H	Hollow	4	Dual Shaft	33	C$31.00	In stock
14HS20-1504D	D	4	Dual Shaft	40	C$18.92	In stock
14HS20-1504S	D	4	Single Shaft	40	C$20.98	In stock

Nema 14 Unipolar 1.8deg 10Ncm(14.16oz.in) 0.4A 35x35x34mm 6 Wires

This unipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 6 wires, each... Read More

0 reviews • Write a review

from

C$12.30

5 + C$11.72

10 + C$11.19

50 + C$10.72

100 + C$10.27

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

This product has a minimum quantity of 10

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

This unipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 6 wires, each phase draws 0.4A, with holding torque 10Ncm(14.2oz.in).

Electrical Specification

Manufacturer Part Number: 14HS13-0406S
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.1Nm(14.2oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 25ohms
Inductance: 17mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 6
Lead Length: 300mm
Weight: 170g

Connection

Bipolar

A+	A-	B+	B-
Red	Yellow	Blue	Green

Unipolar

A+	O+	A-	B+	O-	B-
Red	Brown	Yellow	Blue	Orange	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	10
Holding Torque(oz.in)	14.2
Inductance(mH)	17
Phase Resistance(ohms)	25
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 14 (35 x 35)
IP Rating	40
Lead Length(mm)	300
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	170
