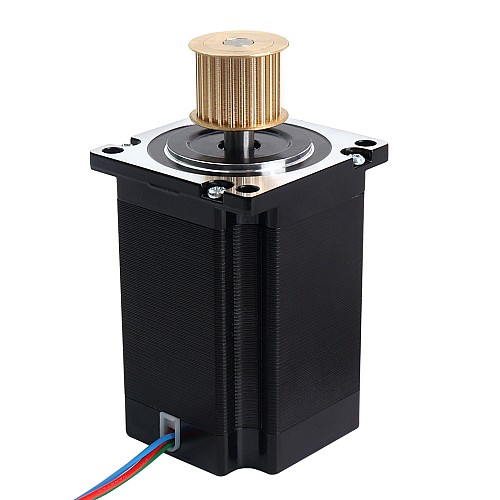

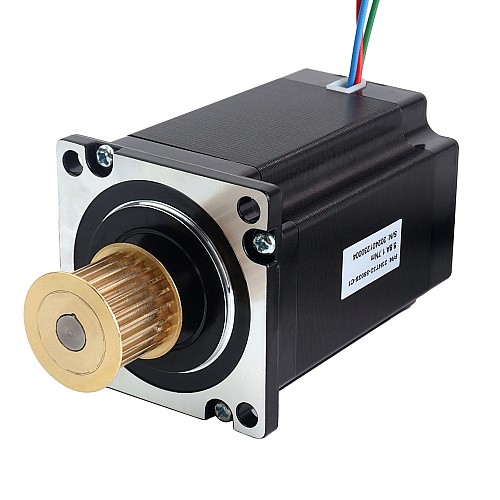

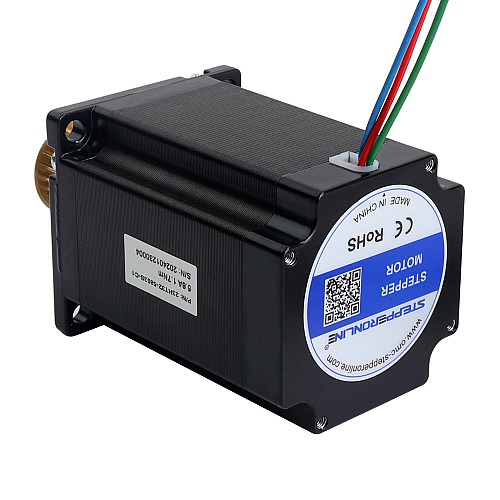

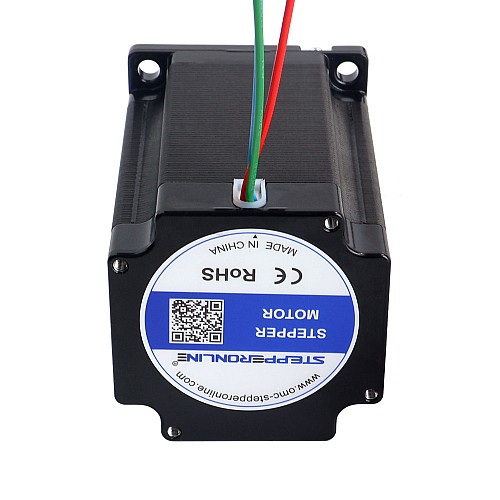

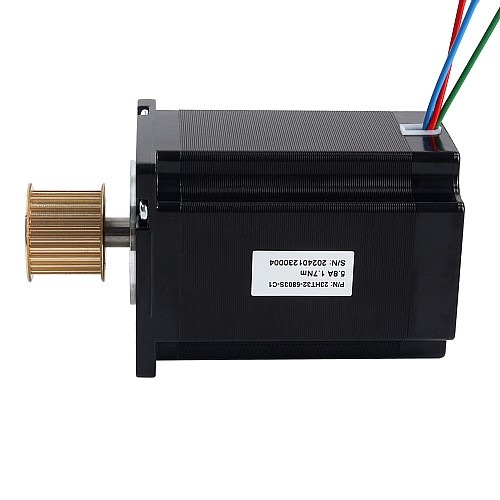

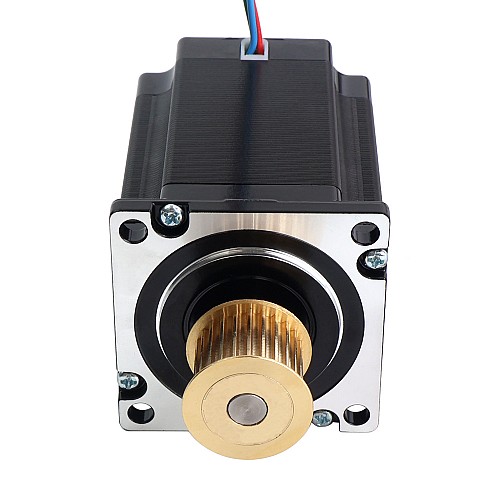

Nema 23 3-Phase Stepper Motor 1.7Nm(240.79oz.in) 5.8A 57x57x80.7mm 3 Wires w/ Timing Belt Pulley

0 reviews - Write a review

C$49.24

5 + C$46.92

10 + C$44.81

50 + C$42.88

100 + C$41.11

In Stock: Pre-order
Model: 23HT32-5803S-C1
Gross Weight: 1.30kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 30

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 3-phase stepper motor with a rated current of 5.8A, a holding torque of 1.7Nm(240.79oz.in) and a timing belt pulley. Compared with 2-phase motors, 3-phase motors run more smoothly and reliably. It is widely used in textiles industry, lathe machines, medical equipmen, chemical industry and other fields that require high precision.

Electrical Specification

Manufacturer Part Number: 23HT32-5803S-C1
Number of phase: 3
Step Angle: 1.2deg
Holding Torque: 1.7Nm(240.79oz.in)
Rated Current/phase: 5.8A
Phase Resistance: 0.75ohms±10%
Inductance: 1.7mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 80.7mm
Shaft Diameter: Φ8mm
Shaft Length: 28mm
Lead Length: 400mm
Weight: 1.2kg

Connection

U	V	W
Green	Blue	Red

Product Type
Product Type	3-phase stepper motor
Electrical Specification
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	170
Holding Torque(oz.in)	240.79
Inductance(mH)	1.7
Insulation Class	B 130C(266F)
No. of Phase	3
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.75
Rated Current(A)	5.8
Step Angle(deg.)	1.2
Physical Specification
Body Length(mm)	80.7
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Lead Length(mm)	400
No. of Lead	3
Output Shaft Type	Timing belt pulley
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	28
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1200
