Nema 42 CNC Stepper Motor Bipolar 22Nm(3115.46oz.in) 6.0A 110x110x150mm 4 Wires
C$0.00
  • In Stock: 1
  • Model: 42HS59-6004S
  • Gross Weight: 12.00kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 218
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

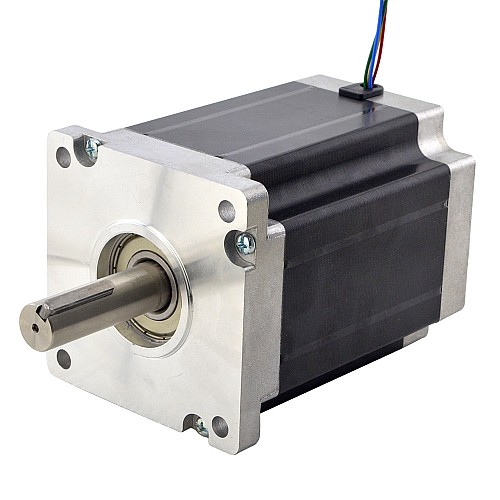

This Nema 42 CNC stepper motor with size 110x110x150mm. It has 4 wires, each phase draws 6A, with holding torque 22Nm(3115.46oz.in).

Electrical Specification

  • Manufacturer Part Number: 42HS59-6004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 22Nm(3115.46oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.75±10%ohms
  • Inductance: 13.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 110 x 110mm
  • Body Length: 150mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 55.37mm
  • Key Way Length: 35mm
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 10.9kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 42HS59-7004S.

Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 2200
Holding Torque(oz.in) 3115.46
Inductance(mH) 13.5
Phase Resistance(ohms) 0.75
Rated Current(A) 6
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 150
Frame Size(mm) Nema 42 (110 x 110)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type Keyway
Product Series S
Shaft Diameter(mm) 19
Shaft Length(mm) 55.37
Single Shaft/Dual Shaft Single Shaft
Weight(g) 10900



File Size
42HS59-6004S_Full_Datasheet.pdf 140.73KB Download
42HS59-6004S.STEP 1.75MB Download
42HS59-6004S_Torque_Curve.pdf 47.93KB Download
