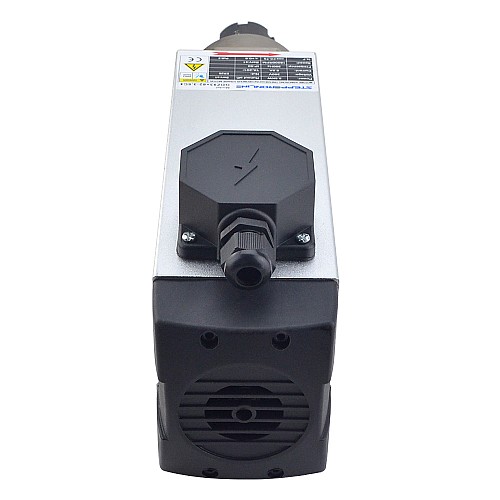

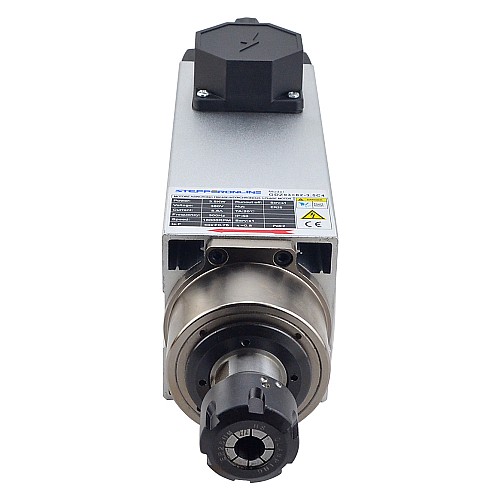

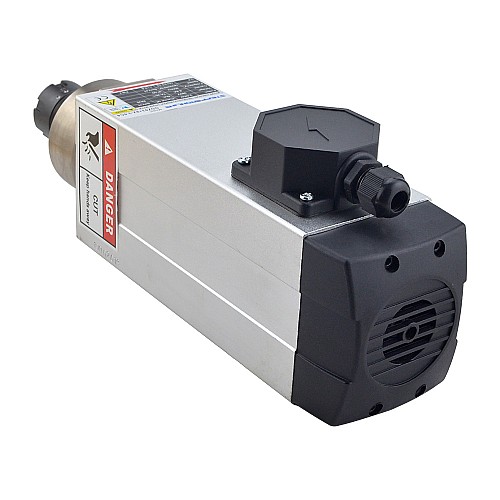

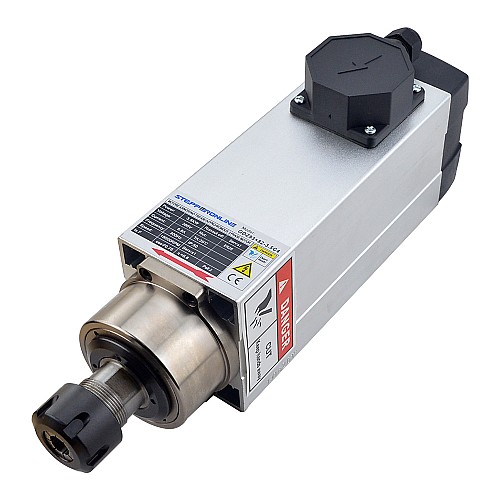

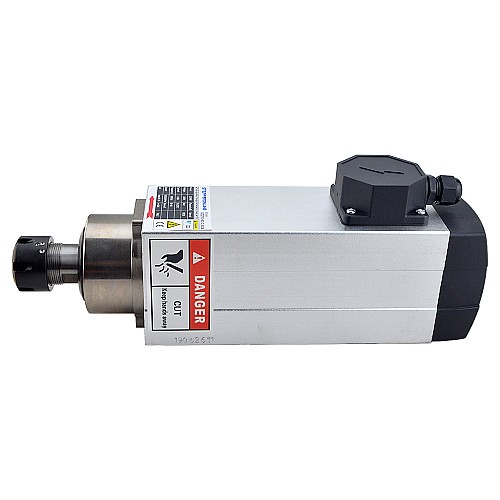

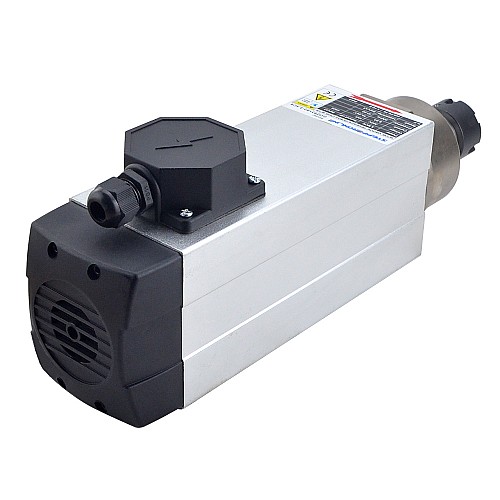

CNC Spindle Motor Air Cooled 380V 3.5KW 18000RPM 300Hz ER25 Collet

0 reviews - Write a review

C$405.67

5 + C$393.81

10 + C$382.65

50 + C$372.09

100 + C$362.10

In Stock: Pre-order
Model: GDZ93x82-3.5C4
Gross Weight: 9.30kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Manufacturer Part Number: GDZ93x82-3.5C4
Material: Stainless steel
Size: 215x82(Length: 215mm, Width: 82mm)
Power: 3.5KW
Voltage: 380VAC
Current: 8.8A
Frequency: 0 ~ 300Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease

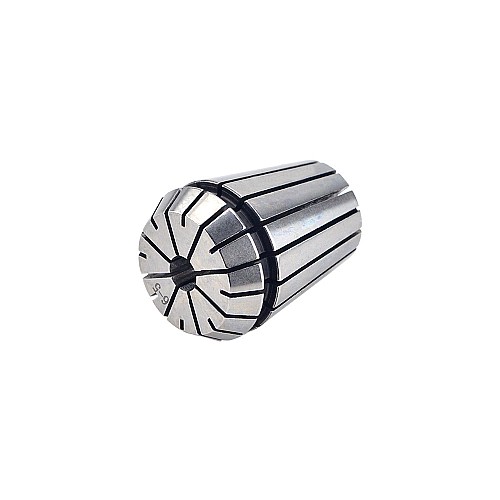

Collet size: ER25 Collet(6mm, 12.7mm)
Bearings: 2x7007(P4), 2x7002C(P4)
Weight: 8.85kg

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	93
Body Length(mm)	215
Body Width(mm)	82
Collet Size	ER25
Material	Stainless steel
Power(Kw)	3.5
Shape	Square
Voltage(VAC)	380
Electrical Specification
Current(A)	8.8
Frequency(Hz)	0 - 300
Speed(rpm)	0 - 18000
Physical Specification
Bearings	2x7007(P4), 2x7002C(P4)
Inventory Method	Dedicated Inventory
Weight(Kg)	8.85
