AU On Sale - T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm 17-Bit Encoder IP65

New -20 %

AU On Sale - T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm 17-Bit Encoder IP65

0 reviews - Write a review

C$327.30

C$261.43

In Stock: 10000
Model: AU-T6-RS400H2A3-M17S
Gross Weight: 2.91kg
Certificated: ISO, CE

Available Options

Ships from

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

T6 Series 400W 3000rpm 1.27Nm 17-bit AC servo products are cost-effective AC digital servo which is designed for position high accurate control, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit, it can provide machines a intelligent performance.
The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption.

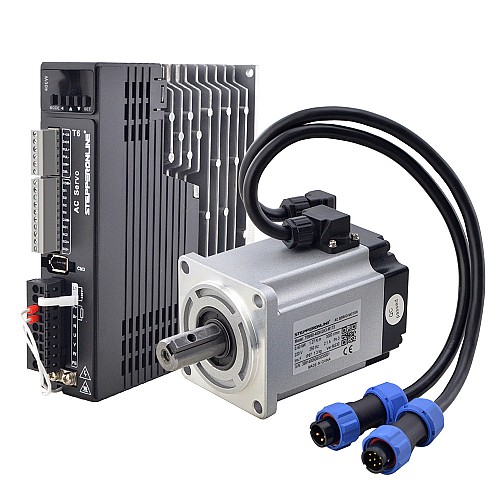

Items in kit

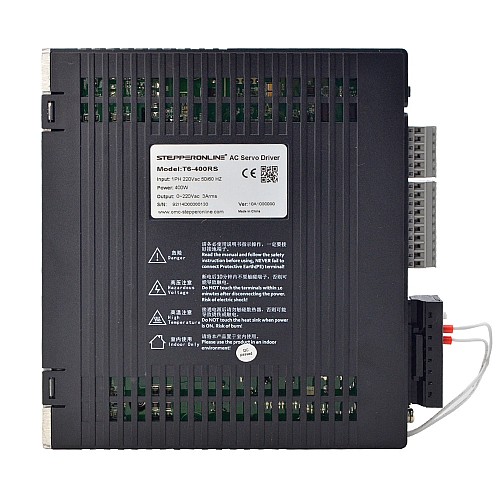

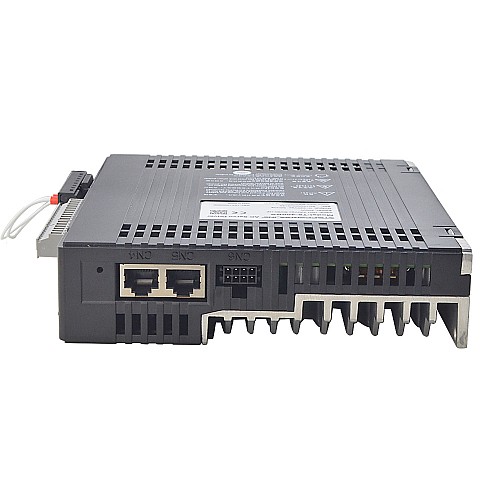

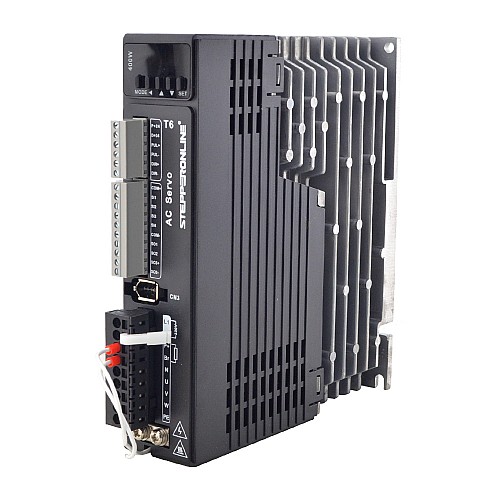

1 x T6-400RS: 400W AC Servo Motor Driver

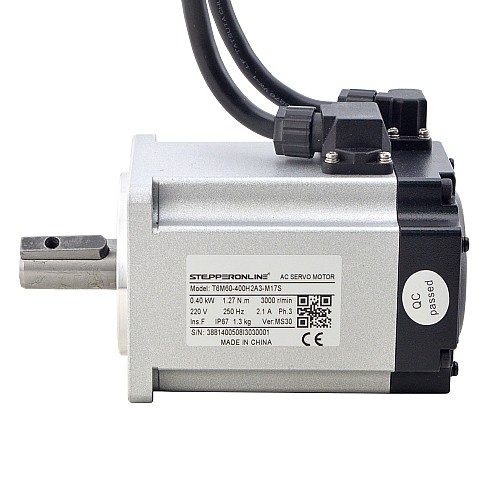

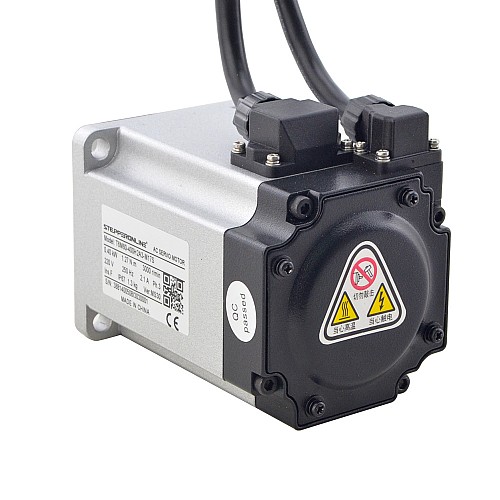

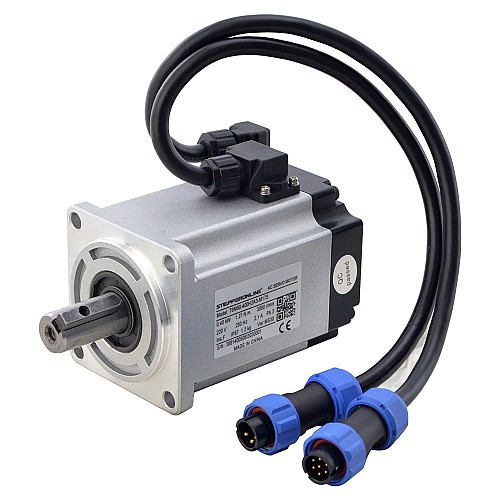

1 x T6M60-400H2A3-M17S: 400W AC Servo Motor 3000rpm 1.27Nm 17-Bit Encoder IP65
1 x CMST1M5: 1.5m Motor Extension Cable with IP65 Aviation Connector
1 x CEST1M5: 1.5m Encoder Extension Cable with IP65 Aviation Connector

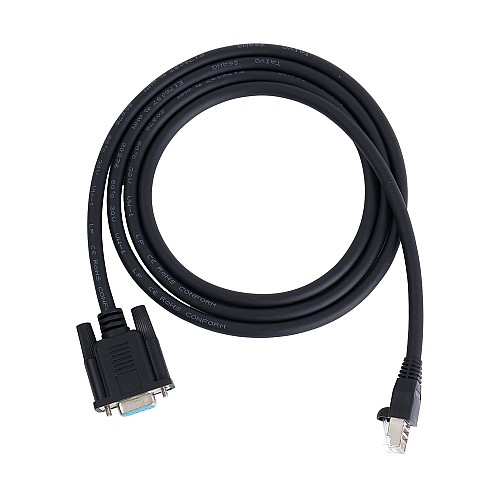

1 x Servo Driver Debugging Cable
1 x USB 2.0 to Serial RS232 Adapter with 1m Cable Converter (option, need purchase separately)

Servo Driver Specification

Part Number: T6-400RS
Modbus RS485 communication
Support pulse control
PR function, 16 paths
Encoder signals A/B/Z differential output and Z OC output
4 inputs and 3 outputs
Rated voltage 220VAC 1ph
Rated power 400W
Available 17-bit/23-bit encoder
Automatic motor identification
Dimension: 175*168*40mm
Control Mode: Position Mode, Velocity Mode, Torque Mode, Pr Mode

Servo Motor Specification

Part Number: T6M60-400H2A3-M17S
Rated Voltage: 220VAC
Rated Power: 400W
Rated Torque: 1.27Nm
Peak Torque: 3.81Nm
Rated Speed: 3000rpm
Peak Speed: 5000rpm
Rated Current: 2.1A
Peak Current: 6.5A
Torque Const: 0.645N.m/A
Back EMF Const: 39V/krpm
Resistance: 5.7ohm
Inductance: 12mH
Inertia: 0.56kg*m²*10^-4
Poles: 10
Encoder: 17bit incremental, magnetic encoder
IP Rating: IP65
Cable Length: 1.5m (optional lengths are 3m, 5m, 10m)
Shaft diameter: 14mm
Mass Weight: 1.3Kg

The extension cable is also available in lengths of 3m, 5m and 10m in the warehouse in China. You can replace it by paying the price difference. If necessary, please leave a message with the length you expect. No cable exchange service in warehouses in the US, Germany, the UK and Australia.

You can purchase the 23-bit encoder motor, model number is T6-RS400H2A1-M23. To learn more about the difference between 17-bit and 23-bit T6 servo motors, please refer to this article.

If your power supply voltage is 110VAC, you need to use this transformer TR500-A220-A120 when using this servo motor.

Electrical Specification
Control Modes	Pulse/RS485
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	220VAC
Peak Speed(rpm)	5000
Peak Torque(Nm)	3.81
Rated Power(W)	400
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
With Brake	No
Physical Specification
Aviation Plug or Not	Yes
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	14
