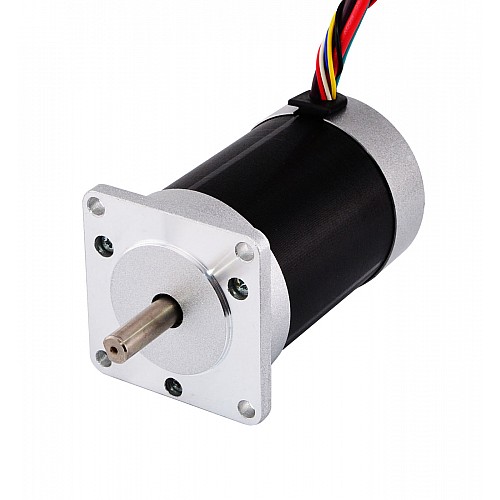

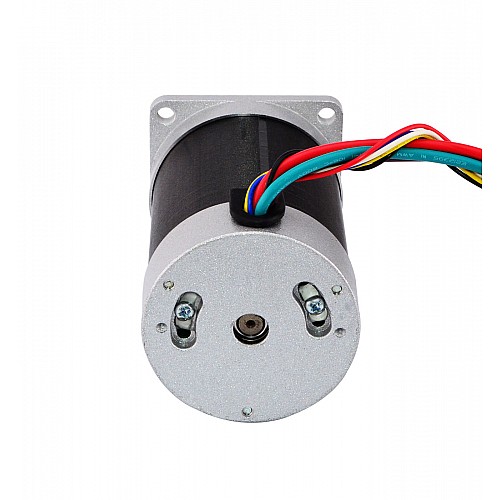

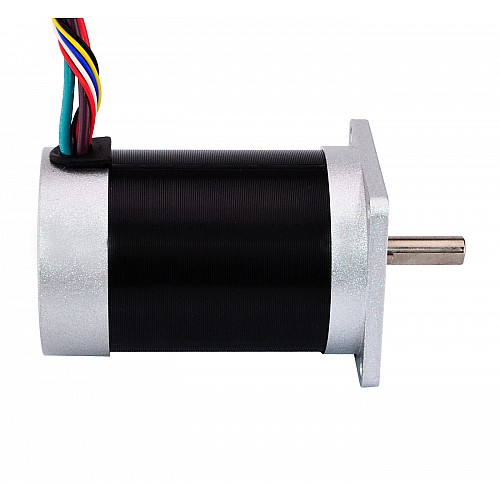

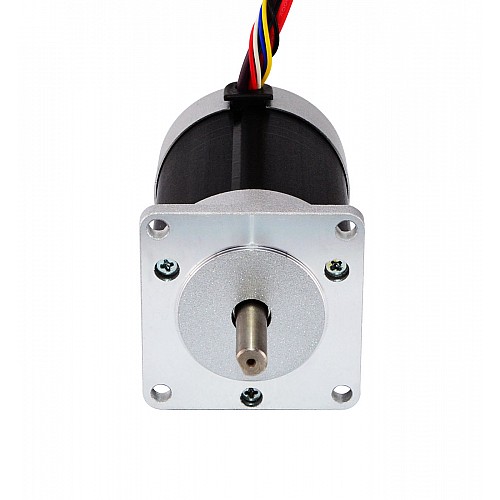

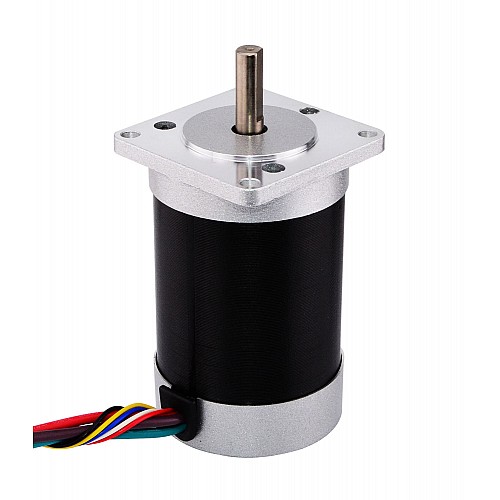

36V 4000RPM 0.33Nm 138W 5.0A Ф57x89mm Brushless DC Motor

0 reviews - Write a review

$36.62

5 + $35.22

10 + $33.93

50 + $32.73

100 + $31.61

In Stock: Pre-order
Model: 57BLR90-36-01
Gross Weight: 1.03kg
Certificated: ISO, CE

Sold: 39

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 57BLR90-36-01
Phase: 3
Poles: 4
Rated Voltage: 36V
Rated Speed: 4000±10%RPM
Rated Torque: 0.33Nm(46.73oz.in)
Rated Current: 5±10%A
Rated Power: 138W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ57mm
Body Length: 89.1mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 0.95kg

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

The gearboxes suitable for this motor are EG23-G5-D8, EG23-G10-D8, EG23-G20-D8, EG23-G50-D8.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5
Rated Power(W)	138
Rated Speed(rpm)	4000
Rated Torque(Nm)	0.33
Rated Voltage(V)	36
Physical Specification
Body Length(mm)	89.1
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	8
Shaft Length(mm)	25
With Gearbox	No
