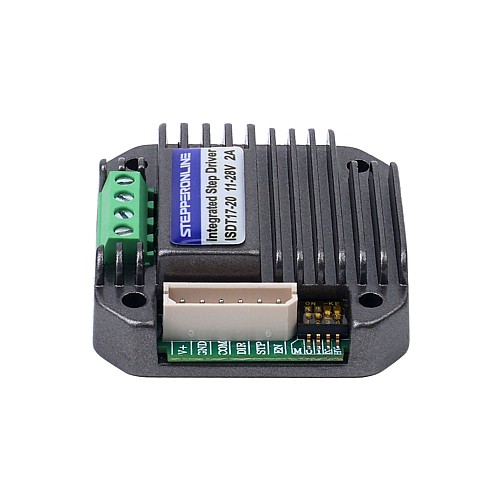

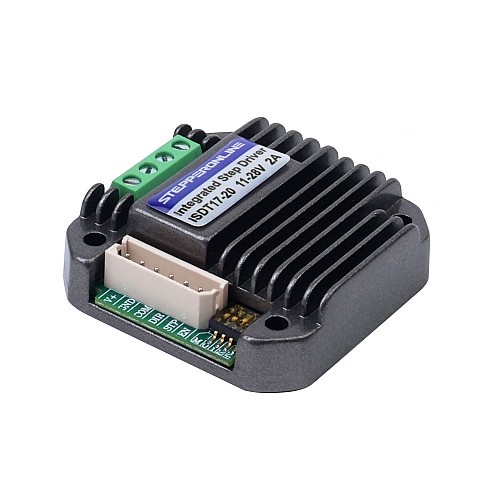

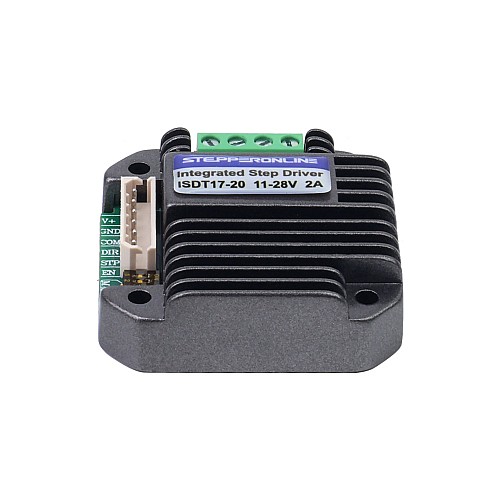

Integrated Stepper Motor Driver 0.6-2.0A 11-28VDC Ultra-silent Version for NEMA 17 Stepper Motor

This is an ultra-silent stepper motor driver that is capable of providing a 0.6-2.0A adjustable peak current and the thickness is only 14.5mm. It can be directly mounted onto NEMA 17 series stepper motors without any flanges. The compact size and ulta low noise make it perfect for places with limited space and require relative silence.

Key Features

• Ultra-silent during operation
• Enclosure is made of die-cast aluminum which improve heat dissipation
• Current reduce automatically when inoperation
• Optical-isolated input, compatible with 3.3-5V and 12-24V signal voltage
• Common signal support common anode and cathode
• Drive current adjustable between 0.6-2.0A
• 1/2/4/8/16/32 Indexer options
• Compact size and ultalow noise
• Overload, overheating and overcurrent protections

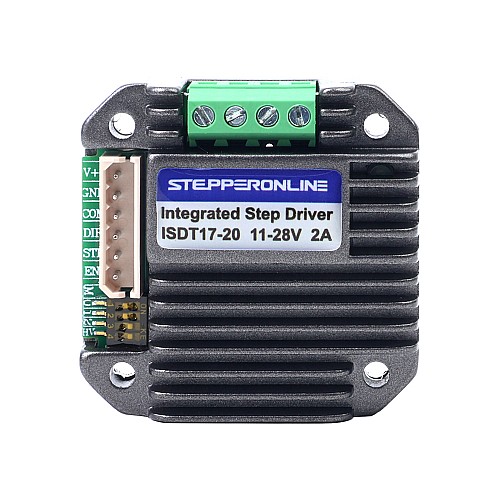

• Miniature size 42.2x42.2x14.5mm

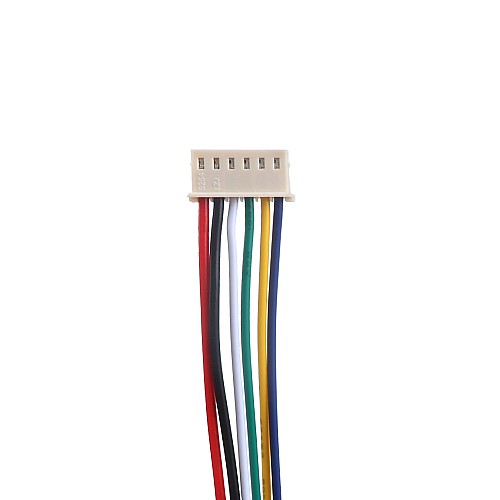

• Cable Length: 300mm

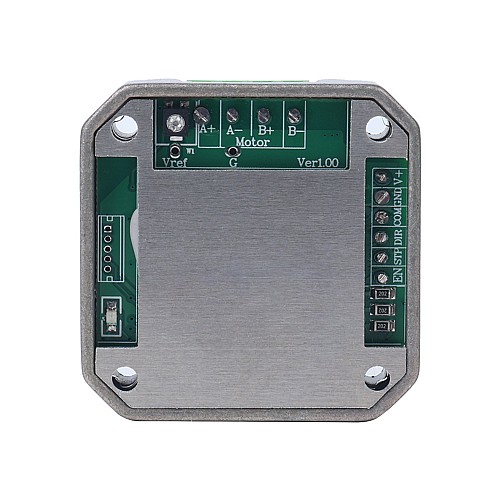

Electrical Specifications

• P/N: ISDT17-20
• Output Peak Current: 0.6-2.0A
• Input Voltage: 11-28VDC(Typical 24VDC)
• Driver Mode: PWM chopper constant current
• Indexer: Optional 1, 2, 4, 8, 16, 32
• Pulse Input Frequency: 1 - 20KHz
• Isolation Resistance: More than 100MΩ
• Dielectric strength: 500VAC for 1MIN.

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling
• Operating Temperature: -20℃-85℃
• Storage Temperature: -40℃ - 75℃
• Humidity: Less than 60%RH
• Vibration: 3G Max
• Weight: 0.028kg
