Round Nema 14 0.9deg 9.5Ncm(13.5oz.in) 0.43A Φ36x21.5mm w/ pulley

1 reviews - Write a review

C$20.75

5 + C$19.77

10 + C$18.88

50 + C$18.07

100 + C$17.33

In Stock: 10000
Model: 14HR09-0434S-C1
Gross Weight: 0.35kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

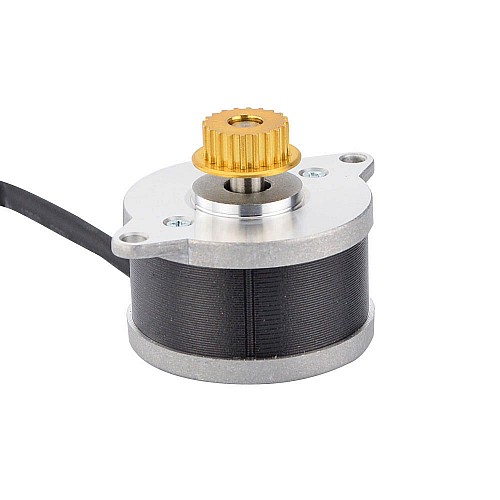

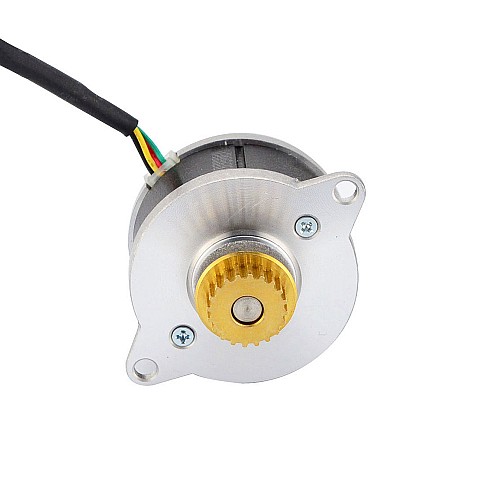

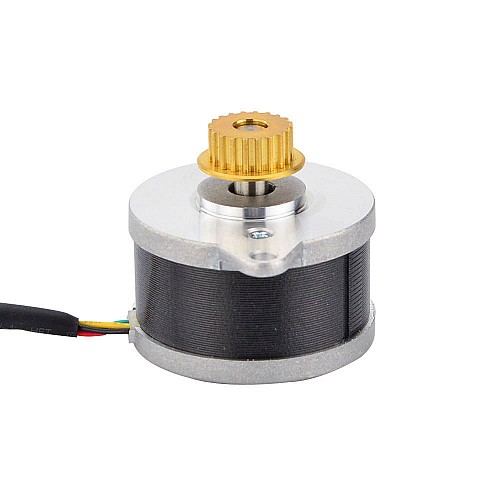

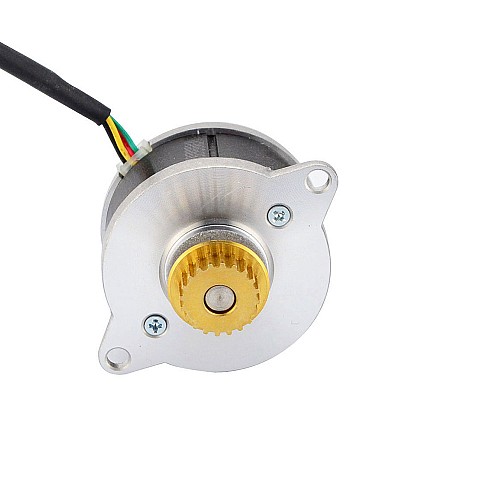

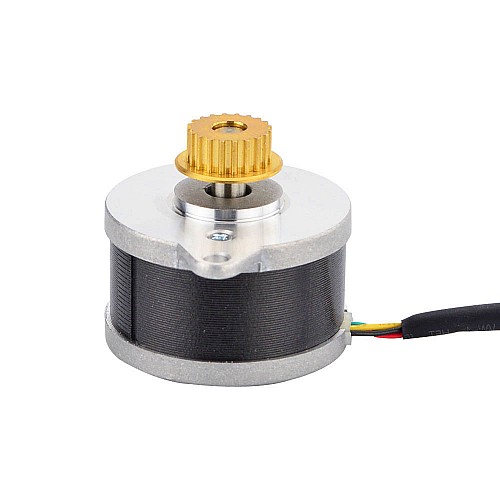

This custom round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x21.5mm. It has 4 wires, each phase draws 0.43A at 3.83V, with holding torque 9.5Ncm(13.5oz.in). A 20 teeth MXL pulley is available, it's a good choice for camera and monitor.

Electrical Specification

Manufacturer Part Number: 14HR09-0434S-C1
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 9.5Ncm(13.5oz.in)
Rated Current/phase: 0.425A
Phase Resistance: 9.0ohms
Inductance: 5.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ36.5mm
Body Length: 21.5mm
Shaft Diameter: Φ5mm
Shaft Length: 11.7mm
Pulley Profile: MXL
Number of Teeth: 20
Pully Pitch: 2.032mm
Pitch Diameter: Φ12.94
Addendum Circle Diameter: Φ12.43
Pully Material: H59 Brass
Number of Leads: 4 with connector PH-4
Lead Length: 120mm
Weight: 130g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	9.5
Holding Torque(oz.in)	13.5
Inductance(mH)	5
Phase Resistance(ohms)	9
Rated Current(A)	0.425
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	21.5
Frame Size(mm)	Nema 14 (Φ36)
Inventory Method	Dedicated Inventory
Lead Length(mm)	120
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	11.7
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	130
