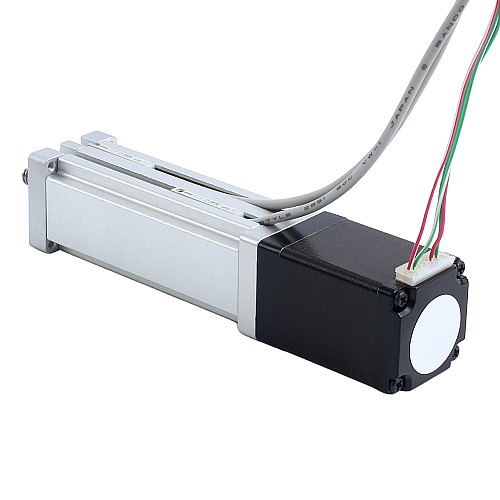

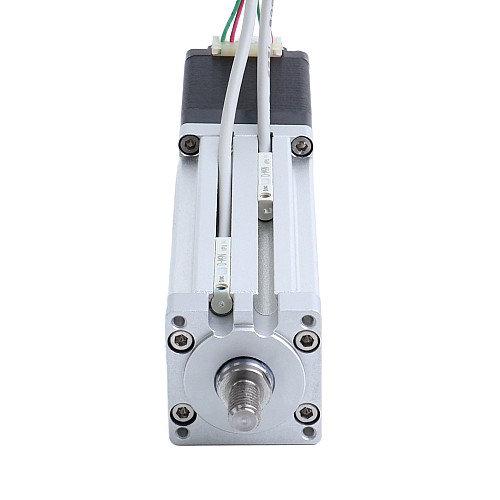

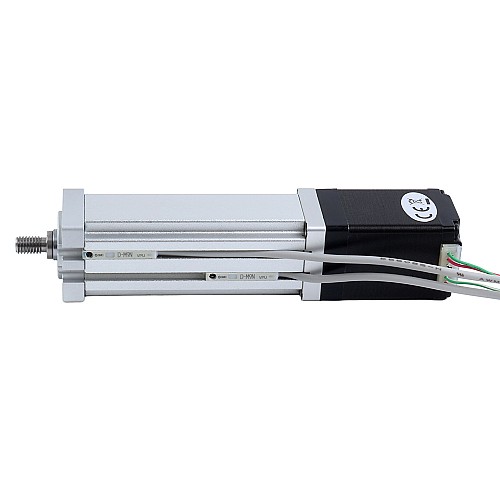

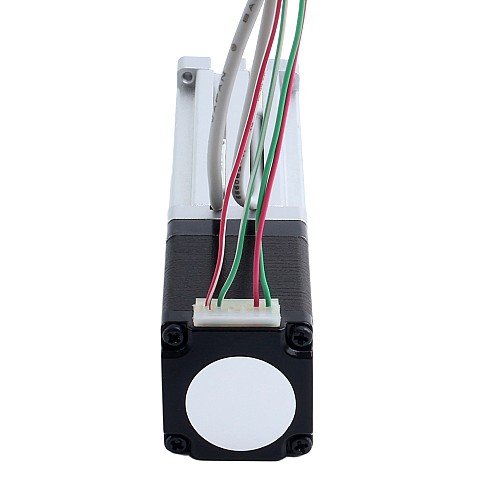

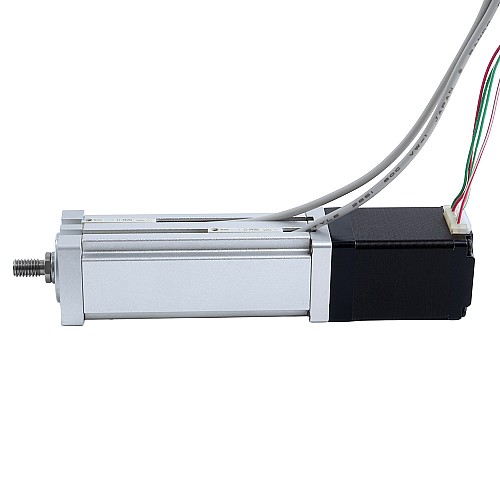

Nema 11 Ball Screw Electric Cylinder 1.0A Stroke 40mm 0.1Nm(14.16oz.in) Lead 1mm(0.03937") with Magnetic Switch
0 reviews - Write a review
C$355.40
5 + C$334.69
10 + C$316.27
50 + C$299.77
100 + C$284.91
  • In Stock: 200
  • Model: LCB11S17BSM10-40D
  • Gross Weight: 0.48kg
  • Certificated: ISO, CE

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product

This LCB series mini electric cylinder is equipped with a Nema 11 stepper motor, featuring a rated current of 1.0A, a 6mm diameter ball screw with a 1mm lead and a 40mm stroke, making it an integrated linear actuator specifically designed for various automation applications.
This electric cylinder can be optionally equipped with accessories such as an encoder, a handwheel, and a brake, thereby enhancing its functionality and flexibility to meet a variety of application requirements.

Electrical Specification

  • MPN: LCB11S17BSM10-40D
  • Screw Type: Ball Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.1Nm(14.16oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.7ohms ± 10%
  • Inductance: 3.7mH ± 20%(1KHz)
  • Switch Output Type: NPN

Physical Specification

  • Motor Size: 28 x 28 x 45mm
  • Lead Screw Diameter: 6mm
  • Stroke Length: 40mm(1.5748")
  • Lead/Step: 0.005mm(0.00019685")
  • Lead/Revolution: 1mm(0.03937")
  • Number of Wires: 4
  • Cable Length: 320mm
  • Weight: 0.33kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Magnetic Switch Wiring

Pin No.
1
2
3
Bipolar
DC 5~24V
GND
Signal Line
Wires
Brown
Blue
Black
Electrical Specification
Holding Torque(Ncm) 10
Holding Torque(oz.in) 14.16
Inductance(mH) 3.7
Phase Resistance(ohms) 3.7
Rated Current(A) 1.0
Step Angle(deg.) 1.8
Physical Specification
Frame Size(mm) Nema 11 (28 x 28)
Lead Screw Diameter(mm) 6
Lead Travel/Revolution(mm) 1
Lead Travel/Step(mm) 0.005
Linear Motor Type Ball Screw
Stroke Length(mm/ft) 40/0.13
File Size
LCB11S17BSM10-40D_Full_Datasheet.pdf 148.37KB Download
