Nema 23 Ball Screw Electric Cylinder 3.0A Stroke 75mm 0.8Nm(113.29oz.in) Lead 10mm(0.393701") with Magnetic Switch

New

Nema 23 Ball Screw Electric Cylinder 3.0A Stroke 75mm 0.8Nm(113.29oz.in) Lead 10mm(0.393701") with Magnetic Switch

0 reviews - Write a review

C$308.01

5 + C$290.07

10 + C$274.11

50 + C$259.80

100 + C$246.92

In Stock: 200
Model: LCB23S18B1L30-75D
Gross Weight: 1.76kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

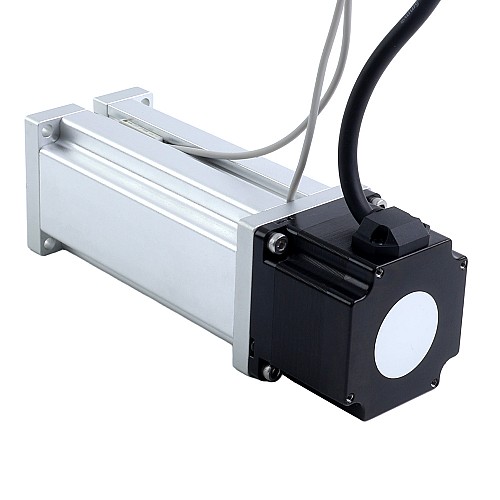

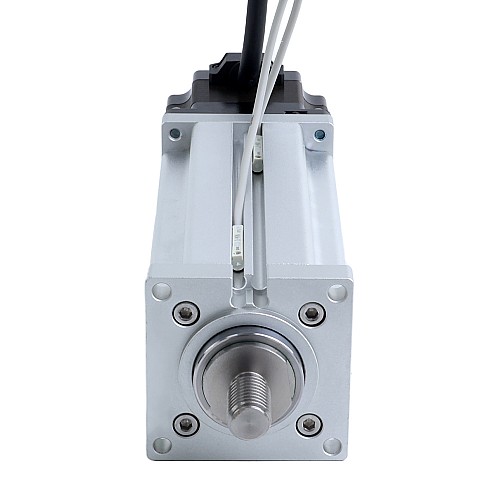

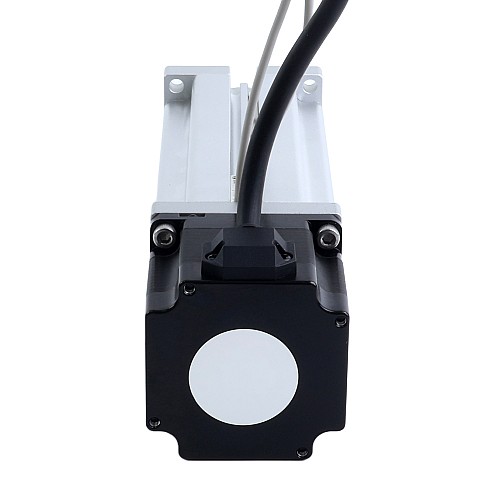

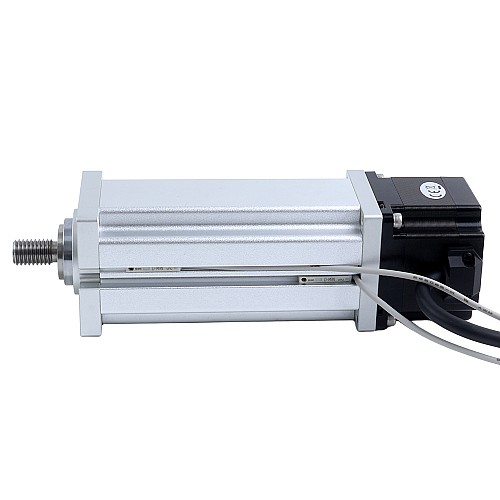

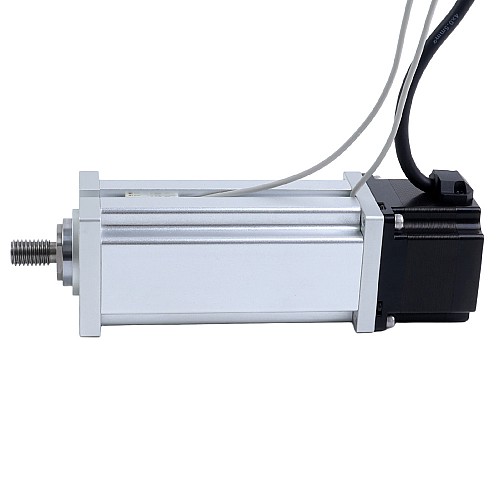

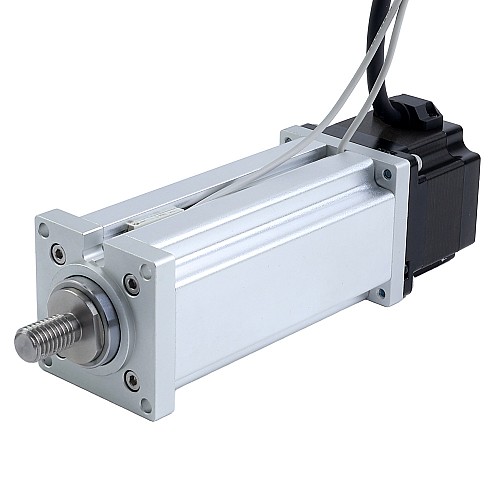

This LCB series mini electric cylinder is equipped with a Nema 23 stepper motor, featuring a rated current of 3.0A, a 12mm diameter ball screw with a 10mm lead and a 75mm stroke, making it an integrated linear actuator specifically designed for various automation applications.
This electric cylinder can be optionally equipped with accessories such as an encoder, a handwheel, and a brake, thereby enhancing its functionality and flexibility to meet a variety of application requirements.

Electrical Specification

MPN: LCB23S18B1L30-75D
Screw Type: Ball Screw
Step Angle: 1.8deg
Holding Torque: 0.8Nm(113.29oz.in)
Rated Current/phase: 3.0A
Phase Resistance: 0.9ohms ± 10%
Inductance: 2.5mH ± 20%(1KHz)
Switch Output Type: NPN

Physical Specification

Motor Size: 57 x 57 x 46mm
Lead Screw Diameter: 12mm
Stroke Length: 75mm(2.9528")
Lead/Step: 0.05mm(0.0019685")
Lead/Revolution: 10mm(0.393701")
Number of Wires: 4
Cable Length: 500mm
Weight: 1.59kg

Motor Connection

Pin No.	1	2	3	4
Bipolar	A+	A-	B+	B-
Wires	Red	Red/White	Green	Green/White

Magnetic Switch Wiring

Pin No.	1	2	3
Bipolar	DC 5~24V	GND	Signal Line
Wires	Brown	Blue	Black

Electrical Specification
Holding Torque(Ncm)	80
Holding Torque(oz.in)	113.29
Inductance(mH)	2.5
Phase Resistance(ohms)	0.9
Rated Current(A)	3.0
Step Angle(deg.)	1.8
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Lead Screw Diameter(mm)	12
Lead Travel/Revolution(mm)	10
Lead Travel/Step(mm)	0.05
Linear Motor Type	Ball Screw
Stroke Length(mm/ft)	75/0.25

File	Size
LCB23S18B1L30-75D_Full_Datasheet.pdf	138.67KB	Download

Tags: Holding Torque(Ncm): 80, Rated Current(A): 3.0, Holding Torque(oz.in): 113.29, Step Angle(deg.): 1.8, Phase Resistance(ohms): 0.9, Inductance(mH): 2.5, Linear Motor Type: Ball Screw, Lead Travel/Revolution(mm): 10, Lead Travel/Step(mm): 0.05, Lead Screw Diameter(mm): 12, Frame Size(mm): Nema 23 (57 x 57), Stroke Length(mm/ft): 75/0.25
