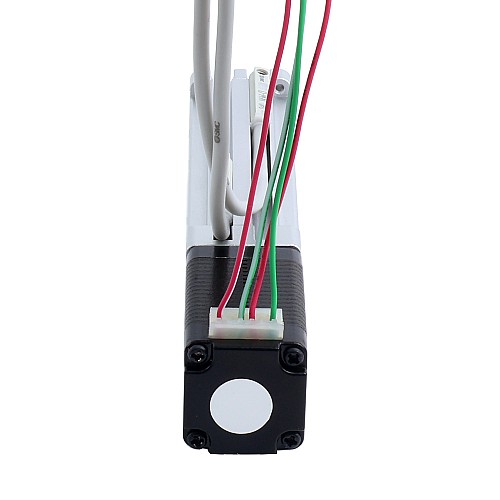

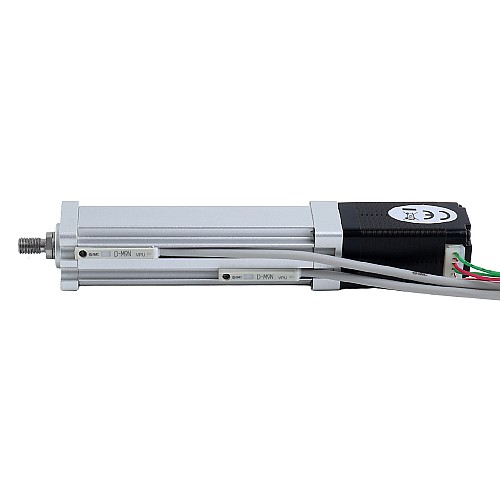

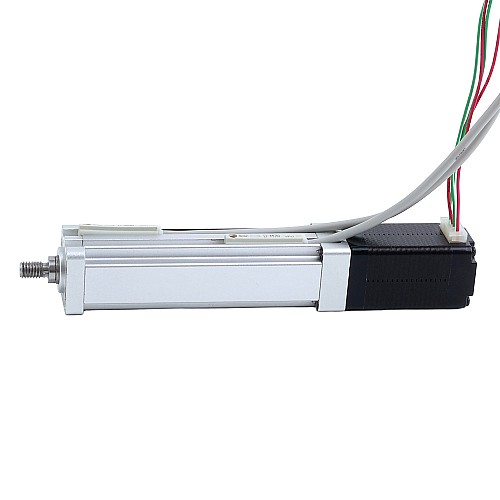

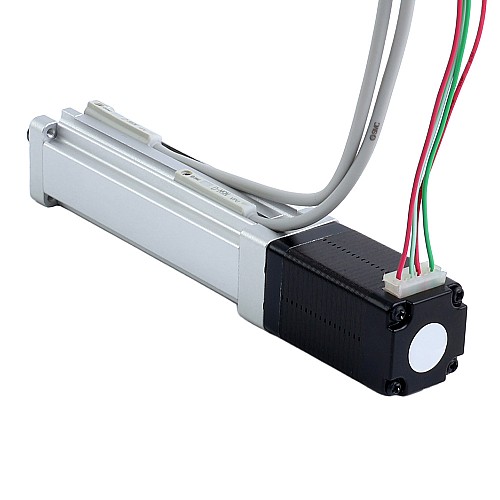

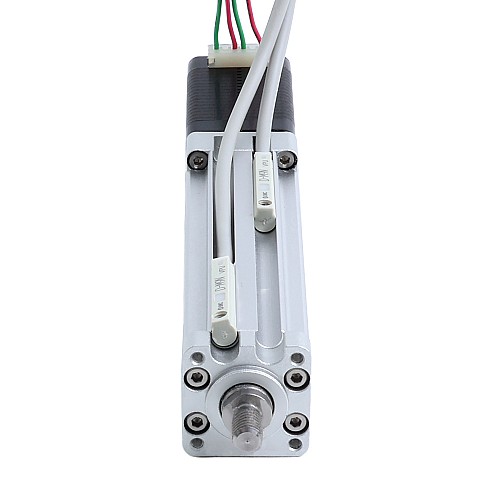

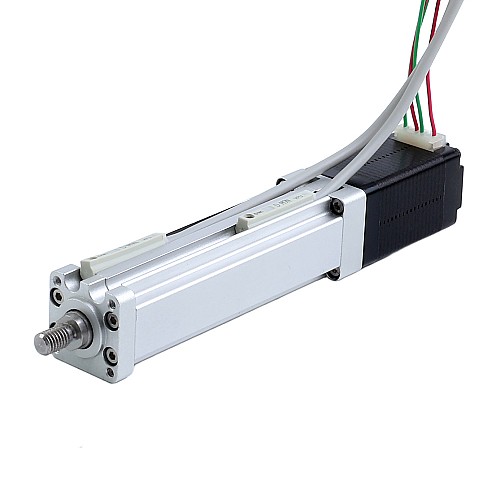

This LCB series mini electric cylinder integrates a Nema 8 stepper motor with a rated current of 0.5A. It is equipped with a 4mm diameter ball screw that features a 1mm lead and a 40mm stroke length, forming a compact linear actuator ideal for a wide range of automation applications.
This electric cylinder can be optionally equipped with accessories such as an encoder, a handwheel, and a brake, thereby enhancing its functionality and flexibility to meet a variety of application requirements.

Electrical Specification

  • MPN: LCB8S15BSS05-40D
  • Screw Type: Ball Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.02Nm(2.83oz.in)
  • Rated Current/phase: 0.5A
  • Phase Resistance: 12.5ohms ± 10%
  • Inductance: 4.5mH ± 20%(1KHz)
  • Switch Output Type: NPN

Physical Specification

  • Motor Size: 20 x 20 x 38.2mm
  • Lead Screw Diameter: 4mm
  • Stroke Length: 40mm(1.5748")
  • Lead/Step: 0.005mm(0.00019685")
  • Lead/Revolution: 1mm(0.03937")
  • Number of Wires: 4
  • Cable Length: 320mm
  • Weight: 0.15kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Magnetic Switch Wiring

Pin No.
1
2
3
Bipolar
DC 5~24V
GND
Signal Line
Wires
Brown
Blue
Black
Electrical Specification
Holding Torque(Ncm) 2
Holding Torque(oz.in) 2.83
Inductance(mH) 4.5
Phase Resistance(ohms) 12.5
Rated Current(A) 0.5
Step Angle(deg.) 1.8
Physical Specification
Frame Size(mm) Nema 08 (20 x 20)
Lead Screw Diameter(mm) 4
Lead Travel/Revolution(mm) 1
Lead Travel/Step(mm) 0.005
Linear Motor Type Ball Screw
Stroke Length(mm/ft) 40/0.13
File Size
LCB8S15BSS05-40D_Full_Datasheet.pdf 148.04KB Download
