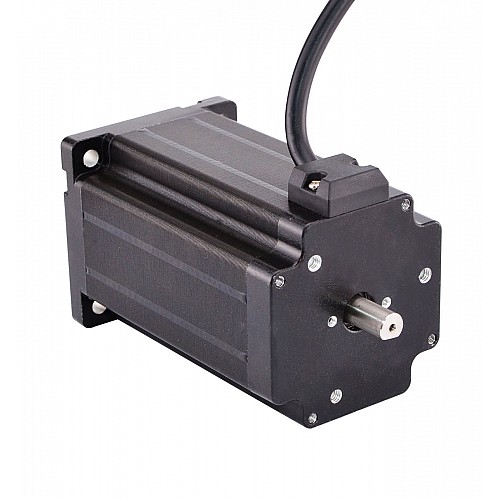

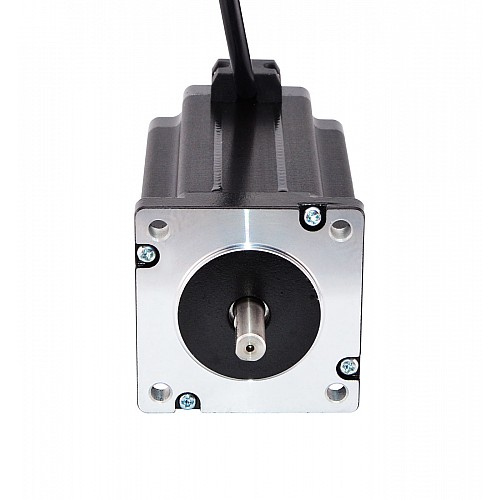

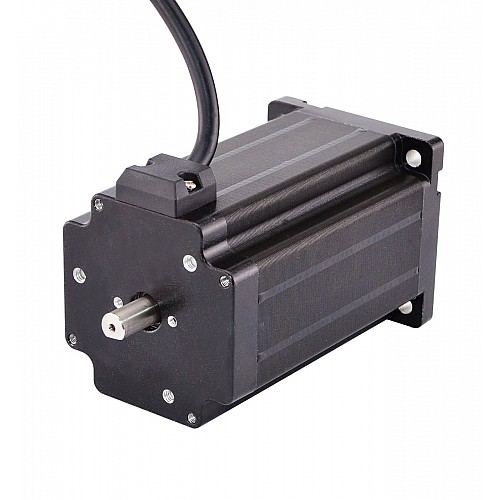

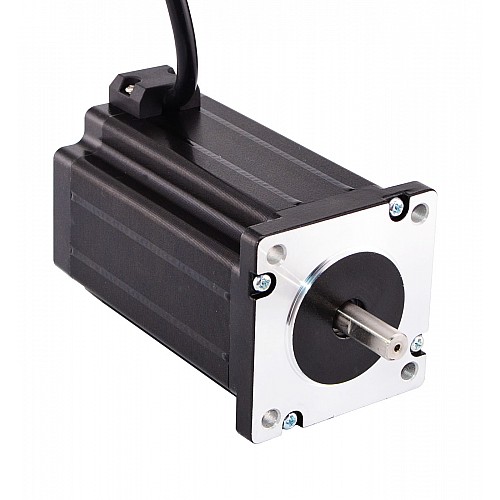

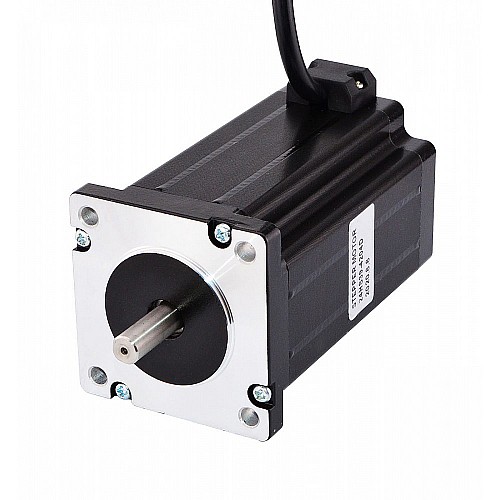

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. The installation dimensions are the same as the conventional Nema 23 motor, with greater torque. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

  • Manufacturer Part Number: 24HS39-4204D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 4Nm(566.4oz.in)
  • Rated Current/phase: 4.24A
  • Phase Resistance: 0.7ohms
  • Inductance: 3mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ8mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue
The applicable bracket for this motor is ST-M2.
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 400
Holding Torque(oz.in) 566.4
Inductance(mH) 3
Phase Resistance(ohms) 0.7
Rated Current(A) 4.24
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 100
Frame Size(mm) Nema 23 (60 x 60)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 1700



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
24HS39-4204D.STEP 2.07MB Download
24HS39-4204D_Torque_Curve.pdf 146.91KB Download
24HS39-4204D_Full_Datasheet.pdf 130.67KB Download
