24V 90W 20.7RPM Geared Brushless DC Motor 30.00Nm(4248.35oz.in) 144.5:1 Planetary Gearbox
0 reviews - Write a review
C$91.42
5 + C$88.76
10 + C$86.24
50 + C$83.86
100 + C$81.61
  • In Stock: 10000
  • Model: M62B90-24P-30S/G62-144.5S1
  • Gross Weight: 2.65kg
  • Certificated: ISO, CE
Sold: 2

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

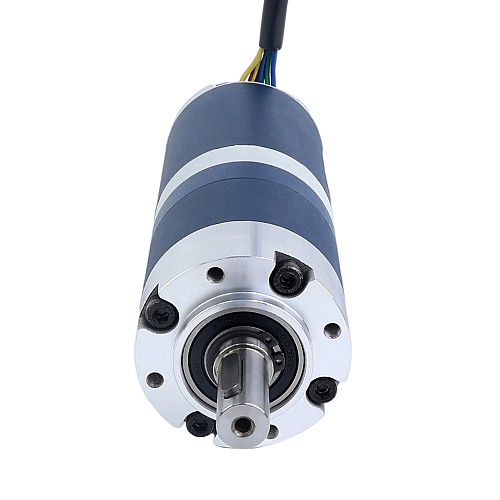

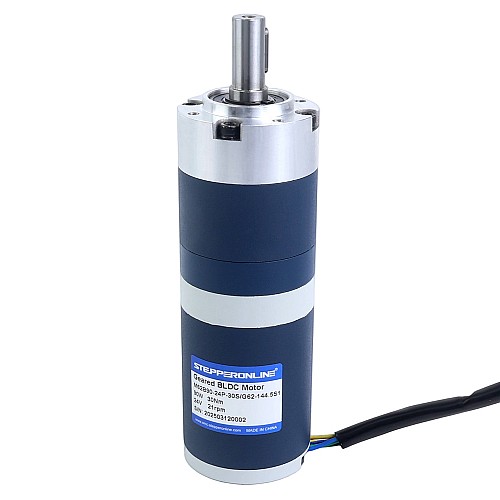

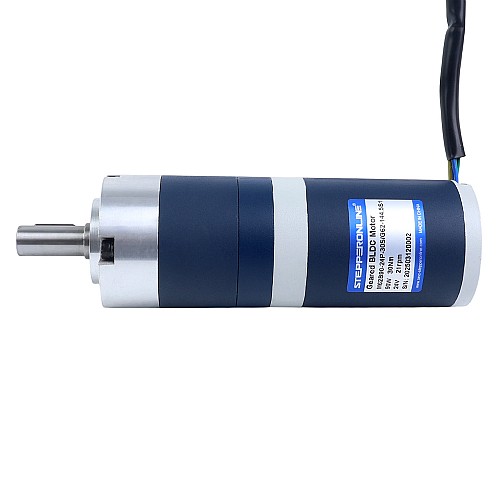

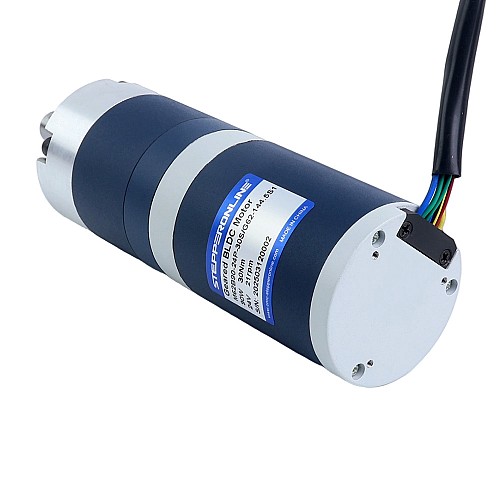

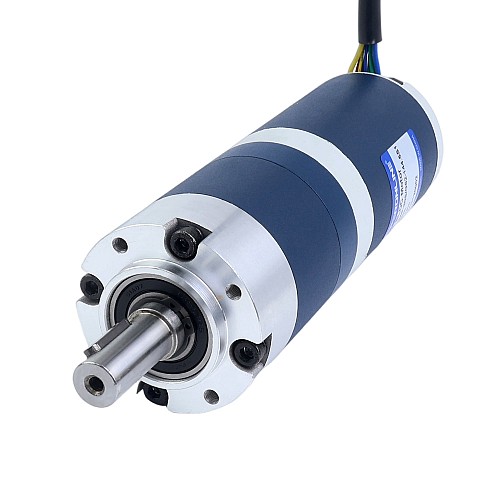

This is a 24V 90W brushless DC motor with a Φ62mm flange diameter, a rated torque of 30.00Nm(4248.35oz.in) and a rated speed of 20.7rpm. It is equipped with a planetary gearbox with a gear ratio of 144.5:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

  • P/N: M62B90-24P-30S/G62-144.5S1
  • Phase: 3
  • Poles: 10
  • Rated Voltage: 24V
  • Rated Power: 90W
  • Rated Current: 5.0A
  • Rated Torque: 30.00Nm(4248.35oz.in)
  • Rated Speed: 20.7rpm
  • Speed without Gearbox: 3800rpm±10%
  • Sensor: Hall Sensor
  • Insulation Class: B 130°C[266°F]

Physical Specifications

  • Gearbox Type: Planetary Gearbox
  • Gearbox Ratio: 144.5:1
  • Frame Size: Φ62mm
  • Body Length: 172.2mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ14mm
  • Shaft Length: 39mm
  • Weight: 2.46kg

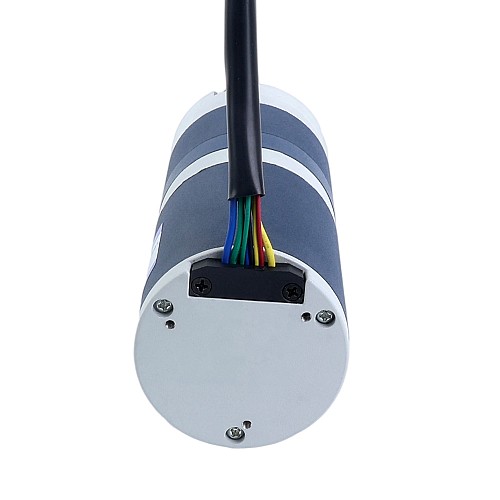

Connection

Motor Wires
Hall Wires
U
V
W
+
-
Ha
Hb
Hc
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
20AWG
26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage 1-Stage 2-Stage
Ratio 3.65 5.36 6.55 8.63 13.3 19.6 24.6 30 35.1 46.2 56.5
Speed(rpm) 822 560 458 348 226 153 122 100 85 65 53
Torque(Nm) 0.63 0.92 1.13 1.48 2.10 3.00 3.80 4.60 5.40 7.10 8.70

Stage 3-Stage
Ratio 71.5 89.8 104.8 112.8 128 144.5 160.9 181.6 196.5 229.5 302.5 398.5
Speed(rpm) 42 33 29 27 23 21 19 17 15 13 9.9 7.5
Torque(Nm) 10.00 13.00 15.00 16.00 18.00 20.00 22.00 25.00 27.00 32.00 40.00 35.00
The recommended BLDC driver to match this motor is BLD-305S.
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 5.00
Rated Power(W) 90
Rated Speed(rpm) 20.7
Rated Torque(Nm) 30
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 172.2
Frame Size(mm) 62 Round
Gear Ratio(xx:1) 144.5
Gearbox Type Planetary Gearbox
Inventory Method Dedicated Inventory
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 39
With Gearbox Yes


File Size
M62B90-24P_30S-G62-144.5S1.STEP 3.17MB Download
M62B90-24P-30S_G62-144.5S1-Full_Datasheet.pdf 50.42KB Download
